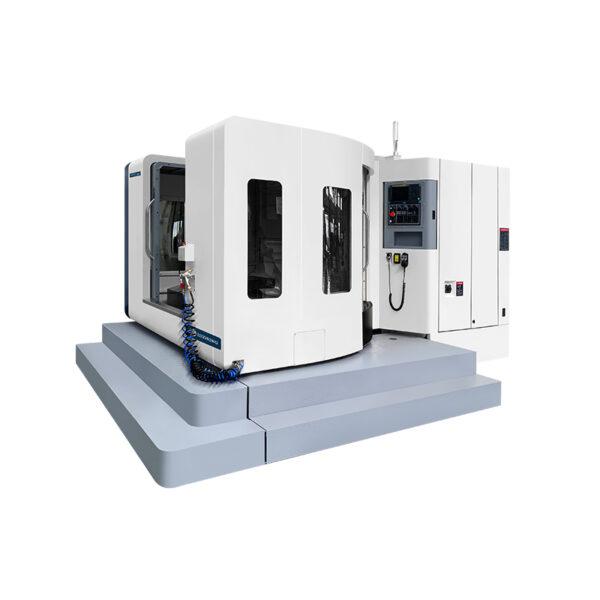

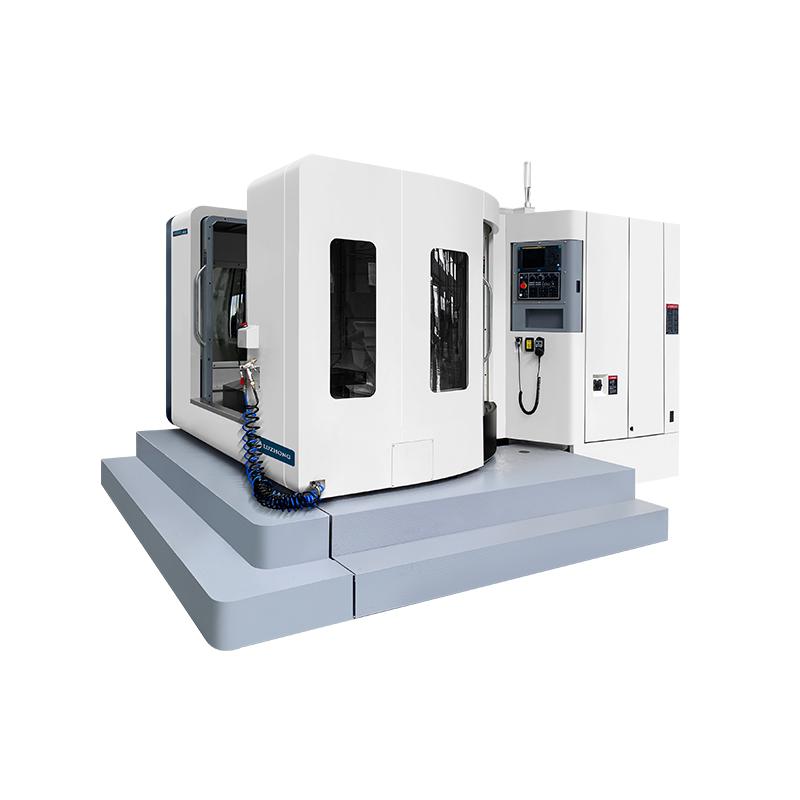

HMC800 Horizontal Machining Center
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
HMC800 |
|
Table size |
mm |
800*800 |
|
X axis travel |
mm |
1300 |
|
Z axis travel |
mm |
1000 |
|
Y axis travel |
mm |
1000 |
|
Distance from spindle center to table surface |
mm |
150-1150 |
|
Distance between spindle nose and table center |
mm |
200-1200 |
|
Table quantity |
pcs |
1 |
|
T slot(number-width*pitch) |
mm |
5-22*125 |
|
Max. worktable load |
kg |
1500 |
|
Table indexing |
° |
1°*360 |
|
Maximum speed of table |
r/min |
10 |
|
Main motor power |
kw |
15/18.5 |
|
Spindle taper |
BT50-190 |
|
|
Max. spindle speed |
rpm |
6000 |
|
Cutting feed speed |
mm/min |
1-10000 |
|
Rapid traverse speed |
m/min |
24 / 20/ 24 |
|
Tool magazine |
Arm 30 |
|
|
Max. tool diameter |
mm |
112/200 |
|
Max. tool length |
mm |
400 |
|
Max. tool weight |
kg |
18 |
|
Tool change time (tool to tool) |
sec |
3 |
|
Machine minimum setting unit |
mm |
0.001 |
|
X,Y,Z axis positioning accuracy |
mm |
0.012 |
|
X,Y,Z axis repeat positioning accuracy |
mm |
0.008 |
|
B axis positioning accuracy |
″ |
10″ |
|
B axis repeat positioning accuracy |
″ |
5″ |
|
Machine weight |
kg |
16000 |
|
Overall dimension |
mm |
5050*3800*3300 |
