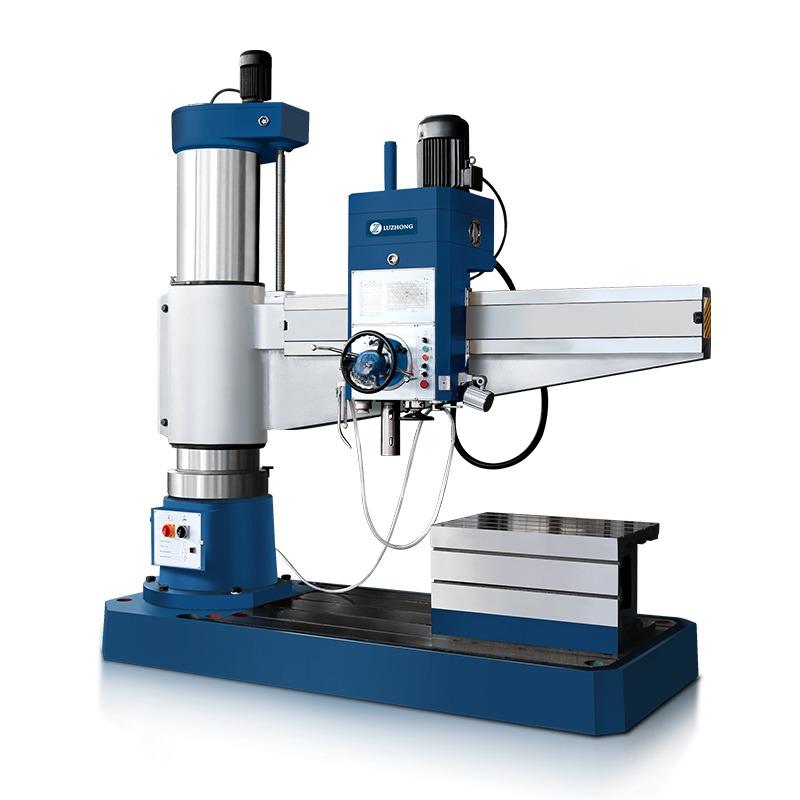

Z3080X20A Radial Drilling Machine
MACHINE description
|
specifications |
Units |
Z3080X20A |
|
Max. drilling diameter |
mm |
80 |
|
Distance from spindle nose to table surface |
mm |
350-1570 |
|
Distance between spindle axis and column surface |
mm |
510-2000 |
|
Spindle travel |
mm |
400 |
|
Spindle taper |
MT |
6 |
|
Spindle speeds range |
(r.p.m) |
16-1600 |
|
Spindle speed step |
16 |
|
|
Spindle feeding range |
(r.p.m) |
0.04-3.20 |
|
Spindle feeding step |
16 |
|
|
Rocker rotary angle |
+/-90° |
|
|
Main motor power |
kw |
7.5 |
|
Movement motor power |
kw |
1.5 |
|
N/W |
kg |
7000 |
|
Overall dimensions(L*W*H) |
mm |
2980*1250*3300 |
