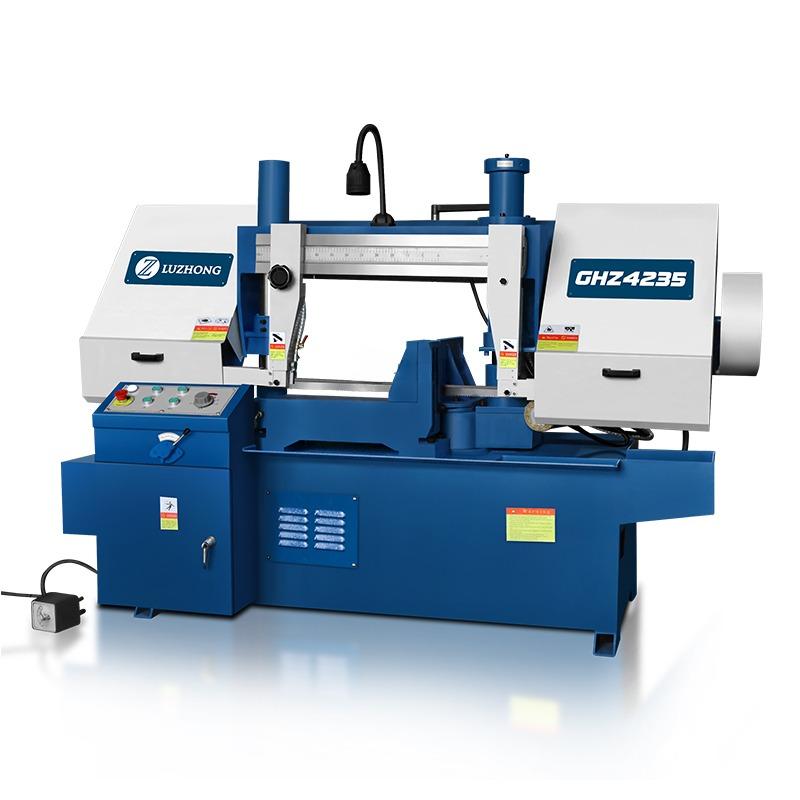

GHZ4235 Rotary Band Saw Machine
MACHINE description
| Model | Units | GHZ4235 | |
| Cutting capability | 0° | mm | 380x350 |
| 45° | mm | 220x350 | |
| Blade speed | m/min | 27、45、69 | |
| Blade size | mm | 4525*34*1.1 | |
| Main motor power | kw | 4 | |
| Hydraulic motor power | kw | 0.55 | |
| Coolant pump（w） | w | 40 | |
| Work clamping method | - | Hydraulic vise | |
| Machine weight | kg | 1000 | |
| Overall dimension | mm | 2200*1300*1600 | |
| Package Size | mm | 2300*1350*1650 | |
