- The European design band saw features European design, dovetail-type clamp movement and locking mechanism.
- The European design band saw features double-speed selection.
- The saw bow can be rotated from 0° to 45°. It has the characteristics of worm gear box transmission structure.
- The calibration of the jaw is convenient for adjustment and positioning at any angle.
- The falling speed of saw bow is controlled by hydraulic cylinder.
- The European design band saw has a sizing device (the machine will automatically stop after sawing the materials).
- The European design band saw has a power break protection device (the machine will automatically power off when the rear protective cover is opened).
- The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.
- It is equipped with a block feeder (with fixed sawing length).

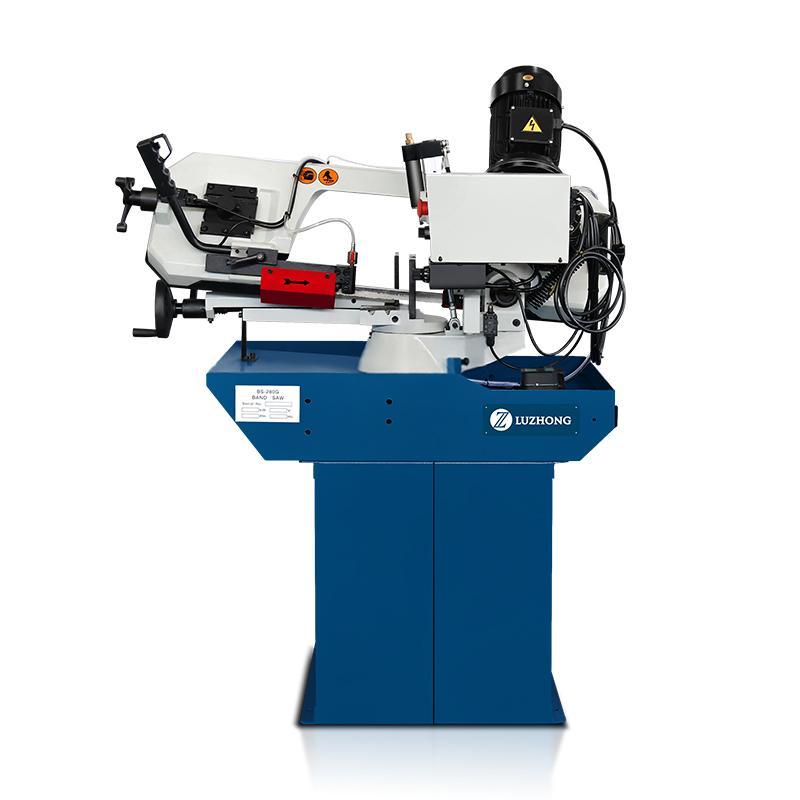

BS-280G Band Saw Machine
MACHINE description
|
Model |
BS-280G |
|
|
Capacity |
Circular @90° |
220mm(8.6”) |
|
Rectangular @90° |
250*155mm(10”*6.1”) |
|
|
Circular @60° |
100mm(4'') |
|
|
Rectangular @60° |
80x95mm(3.1''x3.7'') |
|
|
Circular @45° |
160mm(6”) |
|
|
Rectangular @45° |
160*110mm(6.3”*4.3”) |
|
|
Blade speed |
@50Hz |
40/80MPM |
|
Blade size |
27*0.9*2450mm |
|
|
Motor power |
0.75/1.1kw /1.5HP(3PH) |
|
|
Drive |
Gear |
|
|
Packing size |
133*80*105cm(body) 67*40*62cm(stand) |
|
|
N.W./G.W. |
254/287kg |
|
