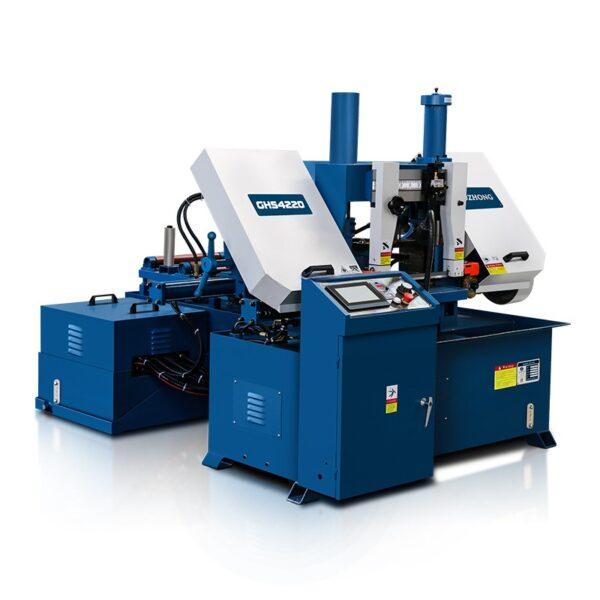

GHS4220 CNC Band Saw Machine
MACHINE description
| Model | Units | GHS4220 | |
| Cutting capability | Circular | mm | 200 |
| Rectangular | mm | 200x200 | |
| Blade speed | m/min | 27、45、69 | |
| Blade size | mm | 2800*27*0.9 | |
| Main motor power | kw | 1.5 | |
| Hydraulic motor power | kw | 0.75 | |
| Coolant pump（w） | w | 40 | |
| Work clamping method | - | Hydraulic automatic | |
| Machine weight | kg | 1200 | |
| Overall dimension | mm | 1300*2100*1250 | |
| Package Size | mm | 1500*2200*1350 | |
