Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

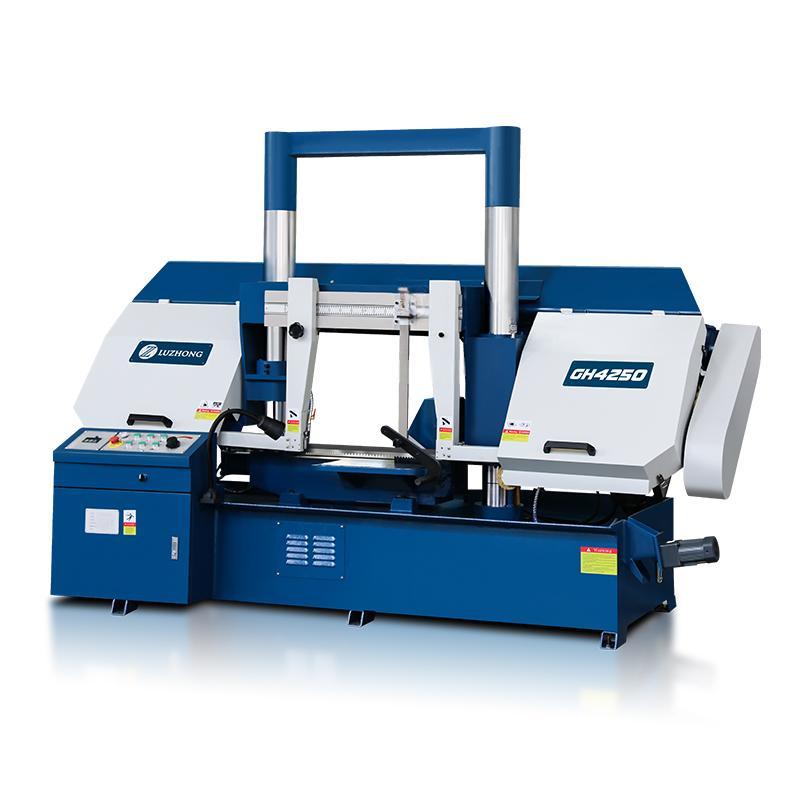

GH4250 Band Saw Machine
MACHINE description
| Model | Units | GH4250 | |
| Cutting capability | Circular | mm | 500 |
| Rectangular | mm | 500x500 | |
| Blade speed | m/min | 27、45、69 | |
| Blade size | mm | 5800*41*1.3 | |
| Main motor power | kw | 5.5 | |
| Hydraulic motor power | kw | 0.75 | |
| Coolant pump（w） | w | 90 | |
| Work clamping method | - | Hydraulic vise | |
| Machine weight | kg | 1900 | |
| Overall dimension | mm | 2800*1300*2100 | |
| Package Size | mm | 2960*1470*2300 | |
CHARACTERISTICS
The main performance characteristics：
- Double upright column machine type ,rigidity good stability.
- Hand wave feeding mechanism, sawing automatic cycle.
- Feeding stepless speed change , Saw belt stepless speed change.
- The size of the positioning device,For batch production.
