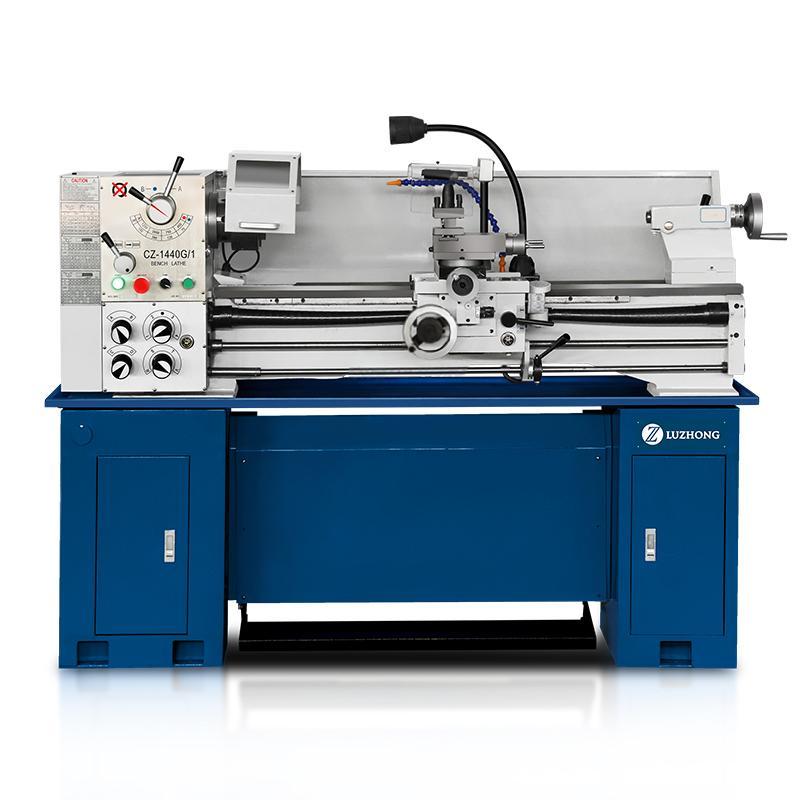

CZ1440G/1 Lathe Machine
from /month
MACHINE description
Specifications |
CZ1440G/1 |
||
Swing over bed |
mm |
355 |
|
Swing over carriage |
mm |
220 |
|
Swing over gap |
mm |
500 |
|
Width of bed-way |
mm |
186 |
|
Distance between centers |
mm |
1000 |
|
Spindle taper |
MT5 |
||
Spindle bore |
mm |
38 |
51 |
Step of speed |
8 |
8 |
|
Range of speed |
rpm |
70-2000 |
84-1850 |
Head nose |
D1-4 |
D5 with D5’ chuck |
|
Metric thread |
mm |
26 kinds(0.4-7) |
|
Inch thread |
T.P.I |
34 kinds(4-56) |
|
Module thread |
M.P |
16 kinds(0.35-5) |
|
Diametral thread |
D.P |
36 kinds(6-104) |
|
Longitudinal feeds |
mm/r |
0.052-1.392(0.002’’-0.0548’’) |
0.091-2.533(0.0036’’-0.1005’’) |
Cross feeds |
mm/r |
0.014-0.38(0.00055’’-0.015’’) |
0.025-0.69(0.0012’’-0.0345) |
Diameter of lead screw |
mm |
22 |
|
Pitch of lead screw |
3mm or 8 T.P.I |
||
Saddle travel |
mm |
1000 |
|
Cross travel |
mm |
170 |
160 |
Compound travel |
mm |
74 |
70 |
Barrel travel |
mm |
95 |
|
Barrel diameter |
mm |
32 |
|
Taper of center |
mm |
MT3 |
|
Motor power |
Kw |
1.5(2HP) |
|
Coolant motor |
Kw |
0.04(0.055HP) |
|
Machine(L×W×H) |
mm |
1920x760x760 |
|
Stand (left)(L×W×H) |
mm |
440x410x700 |
|
Stand (right)(L×W×H) |
mm |
370x410x700 |
|
Machine(N.W/G.W) |
Kg |
505/565 |
|
Stand(N.W/G.W) |
Kg |
70/75 |
|
