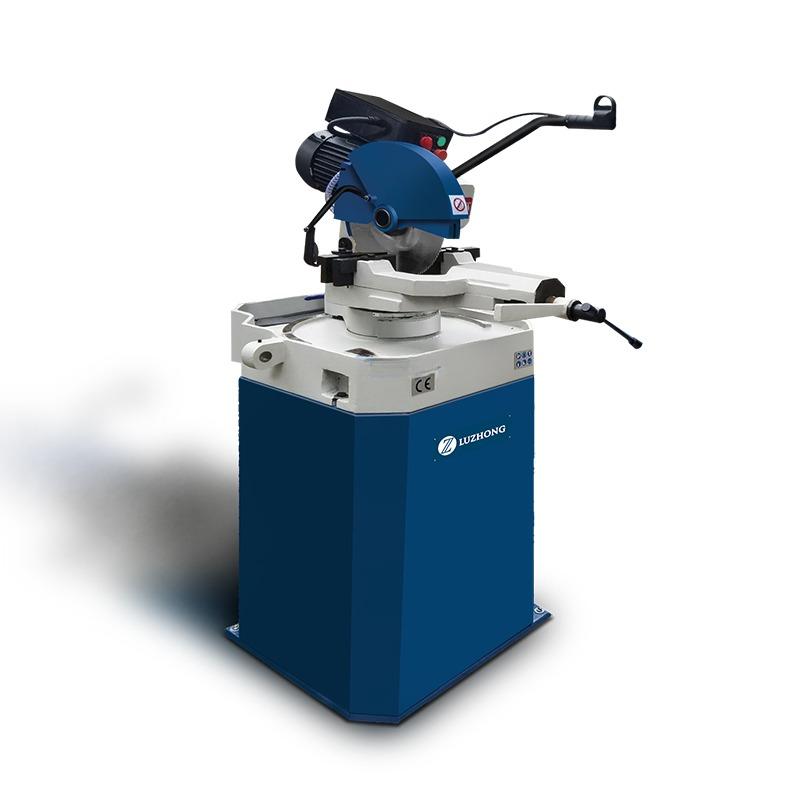

CS-315 Circular Sawing Machine

Get a special offer

    MACHINE description

    Model

    CS-315

    Max. blade size

    315mm(12.4″)

    Machining capacity

    Round steel@90°

    100mm(4″)

    Square steel@90°

    140×90mm(5.5″×3.5″)

    Round steel@45°

    90mm(3.5″)

    Square steel@45°

    100×90mm(4″×3.5″)

    Blade speed @ 50HZ

    18,36rpm

    Vice opening

    145mm(5.7″)

    Motor power

    750W1HP/1.3KW1.7HP(3PH)

    1.1KW/1.5HP(1PH)

    Drive

    Gear

    Package size

    98×62×90cm(body)

    77x58x47cm(stand)

    NW/GW

    185/207kg

    CHARACTERISTICS

    The main performance characteristics:

    1. The HSS saw blade of our circular saw is highly efficient and durable,
    2. The 24V low-voltage controlled hand switch is convenient for operation,
    3. The double clamp structure can quickly clamp materials and rotate 45°from side to side for cutting;
    4. Our circular saw features a double speed motor and with low noise can slow down through worm and gear;
    5. The safety hood of saw blade opens or closes according to the cutting needs, making it safety;
    6. The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the work piece;
    7. Vice complete with anti-burr device, Movable head 45°right and left;
    8. Reduction unit in oil bath, Membrane pump for coolant.,
