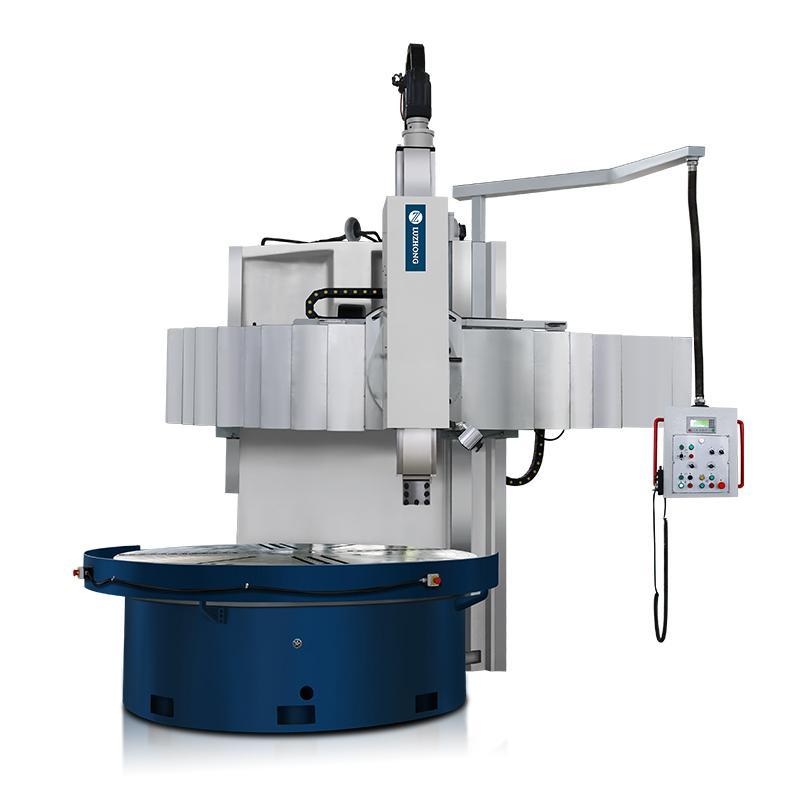

C5112 C5116 C5120 C5123 C5125 C5125 Vertical Lathe
MACHINE description
|
Specification |
Unit |
C5112D |
C5116D |
C5120D |
C5123D |
C5125D |
C5126D |
|
Table diameter |
mm |
1000 |
1400 |
1800 |
2000 |
2250 |
2250 |
|
Max. turning diameter |
mm |
1250 |
1600 |
2000 |
2300 |
2500 |
2600 |
|
Max. height of workpiece |
mm |
1000 |
1000 |
1250 |
1350 |
1600 |
1600 |
|
Max. weight of workpiece |
T |
3.2 |
5 |
8 |
8 |
8 |
8 |
|
Tool sectionsize |
mm |
30x40 |
40x40 |
40X40 |
40x40 |
40x40 |
40x40 |
|
Max.Cutting force of vertical tool post |
N |
25000 |
25000 |
25000 |
25000 |
25000 |
25000 |
|
Max.torque of table |
N·m |
25000 |
25000 |
32000 |
32000 |
32000 |
35000 |
|
Table speed steps |
16 |
16 |
16 |
16 |
16 |
16 |
|
|
Table speed range |
r/min |
6.3-200 |
5-160 |
3.2-100 |
3.2-100 |
2-63 |
2-62 |
|
Vertical tool post feed range |
12 |
12 |
12 |
12 |
12 |
18 |
|
|
Vertical tool post feed steps |
Mm/min |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
0.8-86 |
0.2-145 |
|
Max.travel of vertical tool post(horizontal) |
mm |
750 |
915 |
1115 |
1300 |
1400 |
1450 |
|
Max.travel of vertical tool post(vertical) |
mm |
650 |
800 |
800 |
800 |
800 |
800 |
|
Swivel angle of vertical tool post |
° |
±30° |
±30° |
±30° |
±30° |
±30° |
±30° |
|
Side tool post travel(horizontal) |
mm |
630 |
630 |
630 |
630 |
630 |
630 |
|
Side tool post travel(vertical) |
mm |
900 |
900 |
900 |
900 |
900 |
900 |
|
Tool post rapid traverse |
mm/min |
2000 |
1800 |
1550 |
1550 |
1550 |
1550 |
|
Max.travel of cross beam |
mm |
650 |
650 |
850 |
850 |
1250 |
1250 |
|
Cross beam lifting speed |
mm/min |
350 |
350 |
350 |
350 |
320 |
320 |
|
Main motorpower |
Kw |
22 |
30 |
30 |
30 |
37 |
37 |
|
Cross beam lifting motor power |
Kw |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
|
Machine weight |
T |
8.5 |
13 |
17 |
18 |
23 |
23 |
