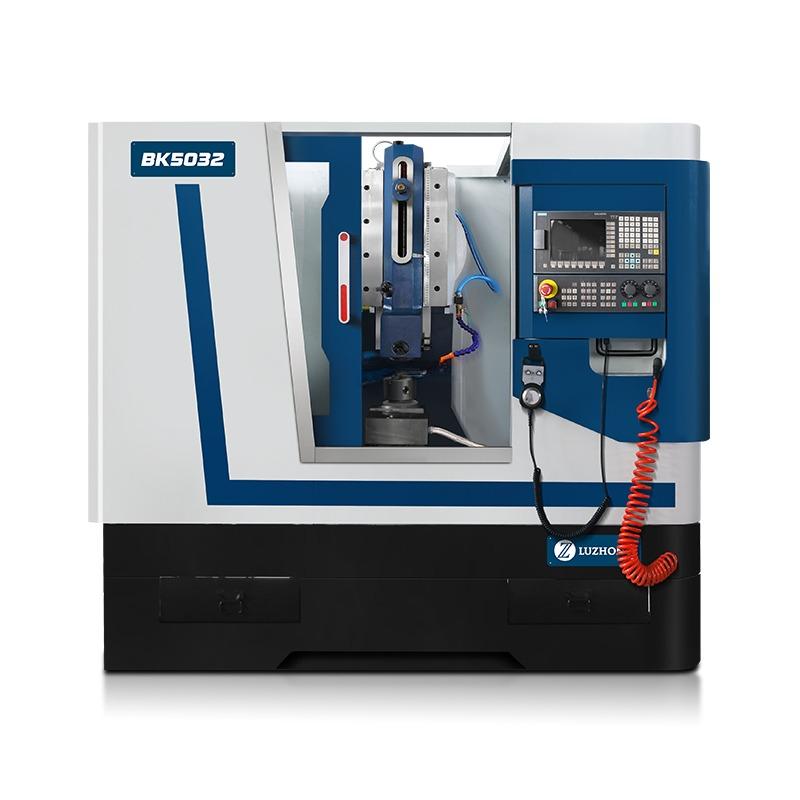

BK5032 CNC Slotting Machine
MACHINE description
|
Specifications |
unit |
BK5032 |
|
Max.ramslottinglength |
mm |
320 |
|
Rammoving frequency per minute |
times/min |
20-80 |
|
Ramvertical adjustment distance |
mm |
315 |
|
Distance from cutter headto column surface |
mm |
600 |
|
The distance from worktable to the lower end of the slide |
mm |
540 |
|
Tablesize |
mm |
800x610 |
|
Tabletravel (X/Y) |
mm |
350x400 |
|
X axis motor torque |
N.M |
7.7 |
|
Y axis motor torque |
N.M |
7.7 |
|
X axis rapid traverse speed |
M/min |
5 |
|
X axis rapid traverse speed |
M/min |
5 |
|
Main motor power |
Kw |
3.7 |
|
Machine weight |
kg |
4000 |
|
Dimensions |
Mm |
2650x2200x2285 |
