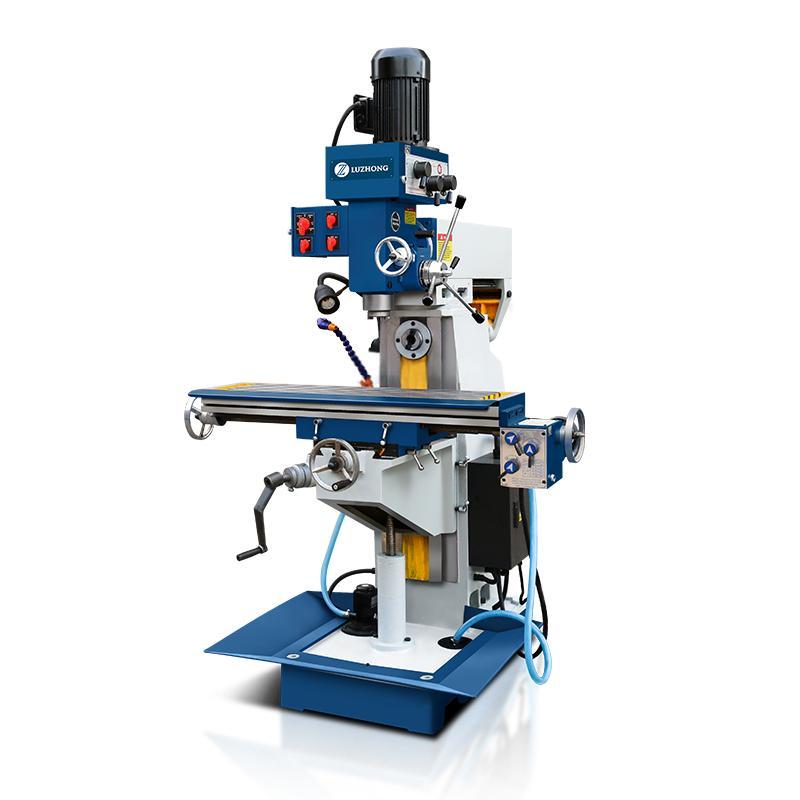

ZX7550CW Drilling And Milling Machine
from /month
MACHINE description
|
Specifications(mm) |
ZX7550CW |
|
Max. drilling dia.(mm) |
50 |
|
Max. end milling width(mm) |
100 |
|
Max. vertical milling dia.(mm) |
25 |
|
Max.boringdia.(mm) |
120 |
|
Max.tappingdia.(mm) |
M16 |
|
Distance from spindle nose to table surface(mm) |
90-490 |
|
Vertical spindletaper |
MT4 |
|
Horizontal spindletaper |
ISO40 |
|
Spindle speed range(r.p.m) |
115-1750(V) 80-1300(H) |
|
Spindle travel(mm) |
120 |
|
Tablesize(mm) |
1000×240 |
|
Tabletravel(mm) |
600×230 |
|
Table feed speed(mm/min) |
X:16-480 |
|
Overall dimensions(mm) |
1280×1285×2080 |
|
Spindlemotor power(kw) |
1.5/2.2(V)2.2(H) |
|
Machineweight(kg) |
900/1000 |
