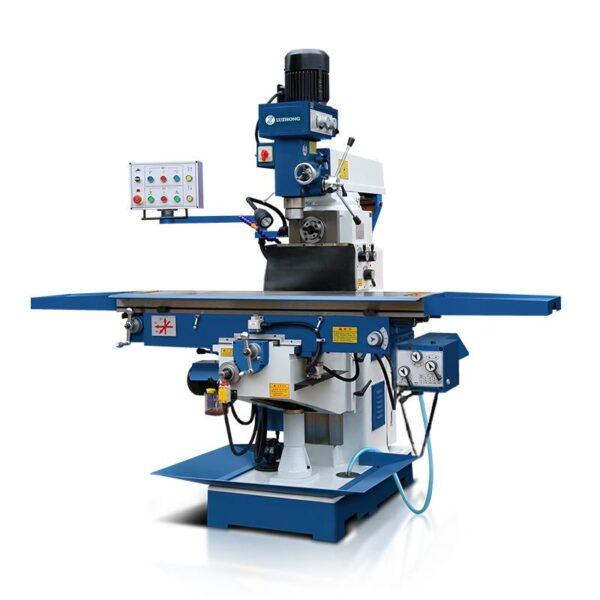

ZX6332 Drilling Milling Machine
from /month
MACHINE description
|
Specifications(mm) |
ZX6332 |
|
Max. drilling dia.(mm) |
50 |
|
Max. end milling width(mm) |
100 |
|
Max. vertical milling dia.(mm) |
25 |
|
Max.boringdia.(mm) |
120 |
|
Max.tappingdia.(mm) |
M16 |
|
Distance from spindle nose to table surface(mm) |
100-480 |
|
Spindletaper |
ISO40 |
|
Spindle speed range(r.p.m) |
115-1750(V)40-1300(H) |
|
Spindle travel(mm) |
120 |
|
Tablesize(mm) |
1500x320 |
|
Tabletravel(mm) |
800x320x450 Opt.1000x320x450 |
|
Table feed speed(mm/min) |
X/Y:22-555 Z:300 |
|
Overall dimensions(mm) |
1710x1720x2330 |
|
Spindlemotor power(kw) |
1.5/2.2(V) 3(H) |
|
Machineweight(kg) |
1950/2050 |
