CHARACTERISTICS
The main performance characteristics：
- 1Vertical and horizontal milling head
- X /Y/Z axis auto feed
- vertical spindle manual feed and micro feed
- Guide way with sparking quenching

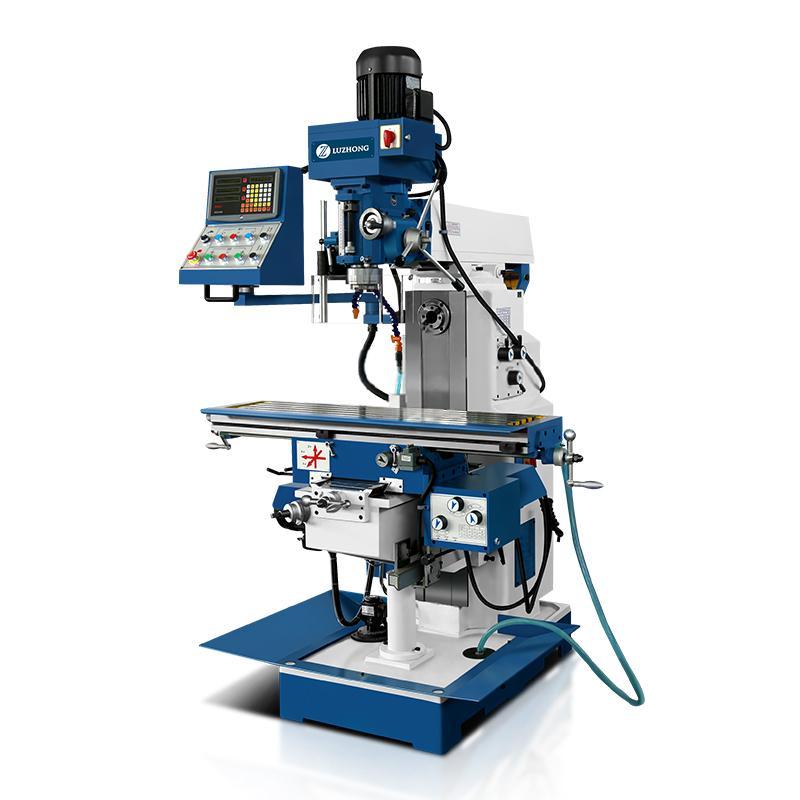

ZX6350ZA Drilling and Milling Machine
from /month
MACHINE description
|
Specifications(mm) |
ZX6350ZA |
|
Max. drilling dia.(mm) |
50 |
|
Max. end milling width(mm) |
100 |
|
Max. vertical milling dia.(mm) |
25 |
|
Max.boringdia.(mm) |
120 |
|
Max.tappingdia.(mm) |
M16 |
|
Distance from spindle nose to table surface(mm) |
80-460 |
|
Spindletaper |
MT4 |
|
Horizontal Spindle taper |
ISO40 |
|
Spindle speed range(r.p.m) |
90-2000(V)40-1300(H) |
|
Spindle travel(mm) |
120 |
|
Tablesize(mm) |
1200×280Optional: 1500x280 |
|
Tabletravel(mm) |
600×280Optional: 1000x280 |
|
Table feed speed(mm/min) |
X/Y:22-555 ,Z:300 |
|
Overall dimensions(mm) |
1500×1600×2200 |
|
Spindlemotor power(kw) |
1.5/2.2(V)3(H) |
|
Machineweight(kg) |
1400/1500 |
