CHARACTERISTICS
The main performance characteristics：
- Gear transmission for vertical/horizontal milling head
- X /Y/Z axis auto feed
- Headstock swivel +/-45°
- Guide way with sparking quenching

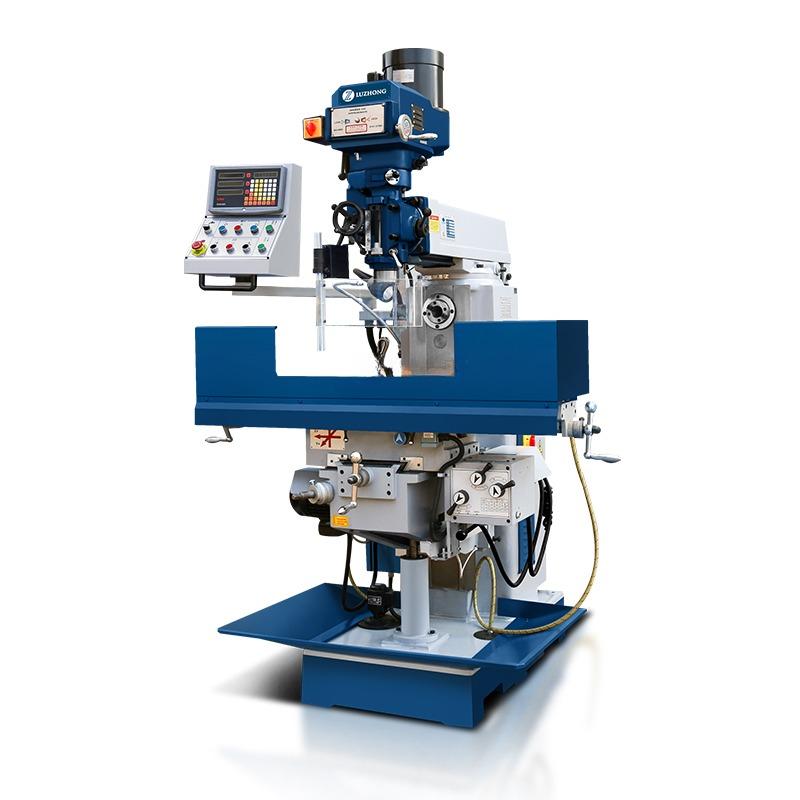

ZX6350T Drilling and Milling Machine
MACHINE description
|
Specifications |
Units |
ZX6350T |
|
Max. drilling dia. |
mm |
50 |
|
Max. end milling width |
mm |
100 |
|
Max. vertical milling dia. |
mm |
32 |
|
Distance from spindle nose to table surface |
mm |
100-530 |
|
Spindle taper |
mm |
MT4 |
|
Spindle speed range |
rpm |
253-4000(V), 32-1320(H) |
|
Spindle travel |
mm |
120 |
|
Table size |
mm |
1120X280 |
|
Table travel |
mm |
630x240x430 |
|
Table Longitudinal feed range |
mm/min |
15.1-266.5(6 steps) |
|
Cross feed range |
15.1-266.5(6 steps) |
|
|
Vertical milling motor |
kw |
1.5 |
|
Main motor power |
kw |
2.0/2.4 |
|
Overall dimensions |
mm |
1400x1300x2100 |
|
Machineweight |
kg |
1300/1400 |
