CHARACTERISTICS
The main performance characteristics：
- Gear transmission for vertical/hozizontal milling head
- ZX6350C :X axis auto feed,Y/Z axis manual feed
- Headstock swivel +/-45°
- Guide way with sparking quenching

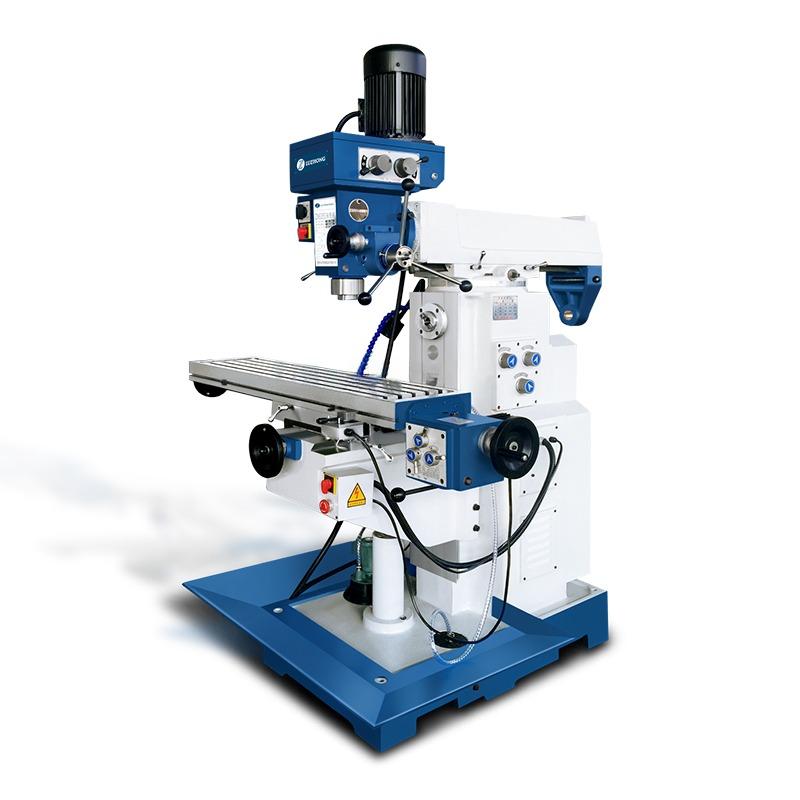

ZX6350C Drilling and Milling Machine
from /month
MACHINE description
|
Specifications |
ZX6350C |
|
Max.drilling diameter(mm) |
50 |
|
Max.end milling width(mm) |
100 |
|
Max.vertical milling diameter(mm) |
25 |
|
Max.boring diameter(mm) |
120 |
|
Max tapping diameter |
M16 |
|
spindle nose to table surface(mm) |
80-460 |
|
Spindle speeds(r.p.m) |
115-1750(V) 40-1300(H) |
|
Spindle travel(mm) |
120 |
|
Table size(mm) |
1200×280 |
|
Table travel(mm) |
600×260 |
|
Machine size(mm) |
1500×1600×2200 |
|
Motor power(KW) |
1.5/2.2(V),2.2(H) |
|
Weight(Kg) |
1300/1400 |
