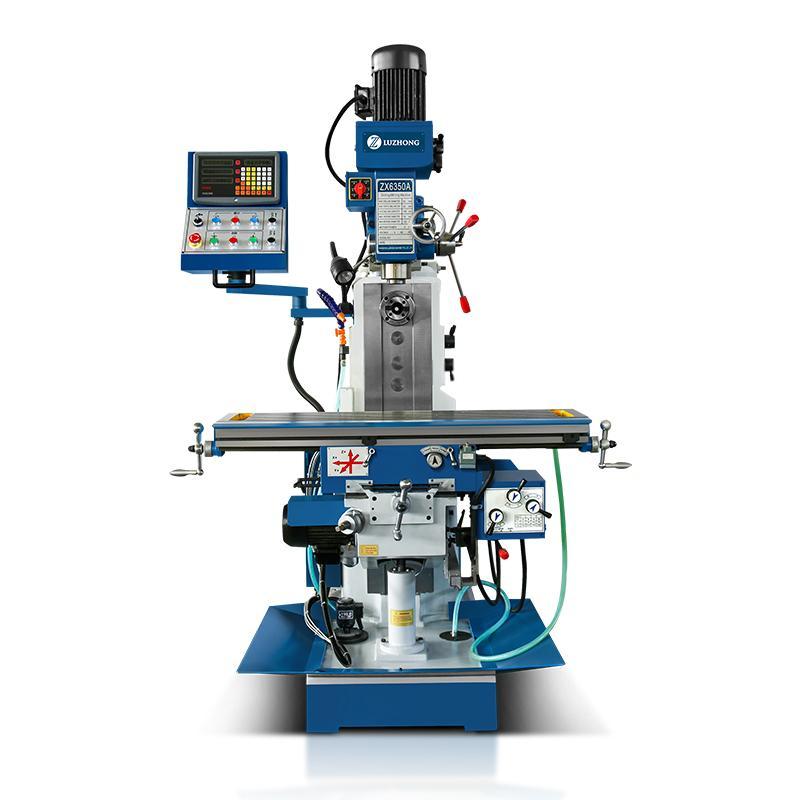

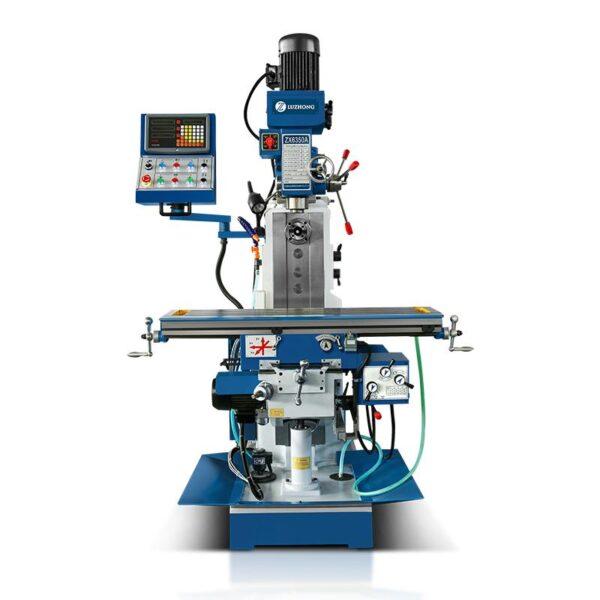

ZX6350A Drilling and Milling Machine
MACHINE description
|
Specifications |
ZX6350A |
|
Max.drilling diameter(mm) |
50 |
|
Max.end milling width(mm) |
100 |
|
Max.vertical milling diameter(mm) |
25 |
|
Max.boring diameter(mm) |
120 |
|
Max tapping diameter |
M16 |
|
spindle nose to table surface(mm) |
80-460 |
|
Spindle speeds(r.p.m) |
(V)115-1750 (H)40-1300 |
|
Spindle travel(mm) |
120 |
|
Table size(mm) |
1200×280 |
|
Table travel(mm) |
600×300 |
|
Machine size(mm) |
1500×1600×2200 |
|
Motor power(KW) |
2.2 1.5/2.2 |
|
Weight(Kg) |
1400/1500 |
