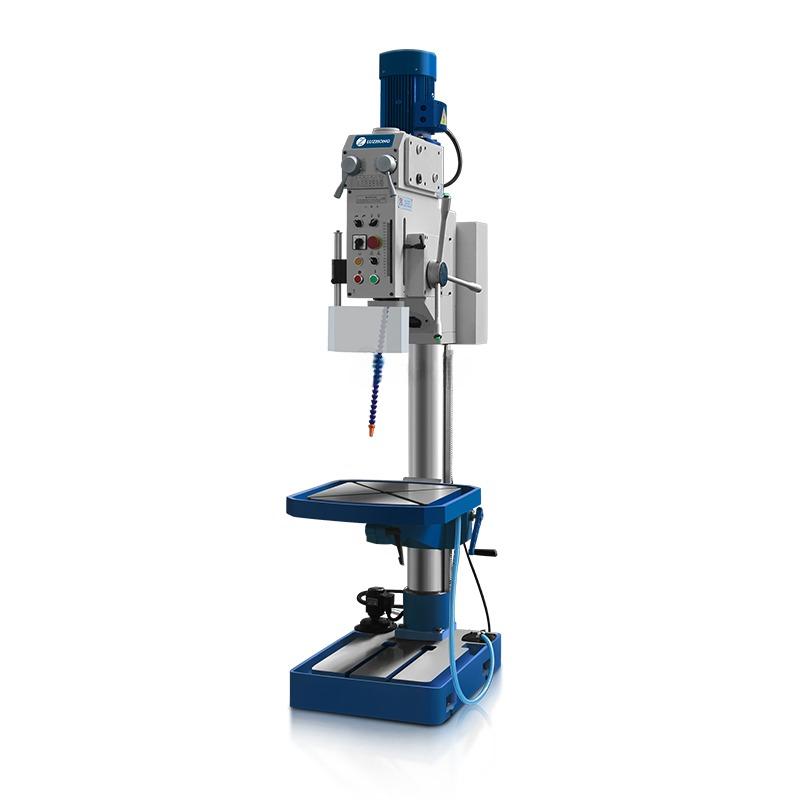

Z5035A Vertical Drilling Machine
MACHINE description
|
Model |
unit |
Z5035A |
|
Max. drilling capacity |
Mm |
35 |
|
Max. tapping capacity |
Mm |
M22 |
|
Distance spindle axis to column surface |
Mm |
590 |
|
Max. distance spindle nose to base |
Mm |
1150 |
|
Max. spindle travel |
Mm |
155 |
|
Spindle table |
MT4 |
|
|
Number of speed step of the spindle |
Step |
12 |
|
Spindle speed range |
r/mm |
125-3030 |
|
Feed steps of the spindle |
degree |
3 |
|
Feed range of the spindle |
Mm/r |
0.1,0.2,0.3 |
|
Max. stroke of the worktable and its bracket |
Mm |
530 |
|
Rotation degree of worktable and its bracket in cross direction |
Degree |
±45° |
|
Working area of the worktable |
Mm |
500*420 |
|
Dia. of column |
mm |
120 |
|
Main motor power |
KW |
1.0/1.2 |
|
Max. external dimension |
Mm |
875*510*2140 |
|
N.W |
Kg |
430 |
