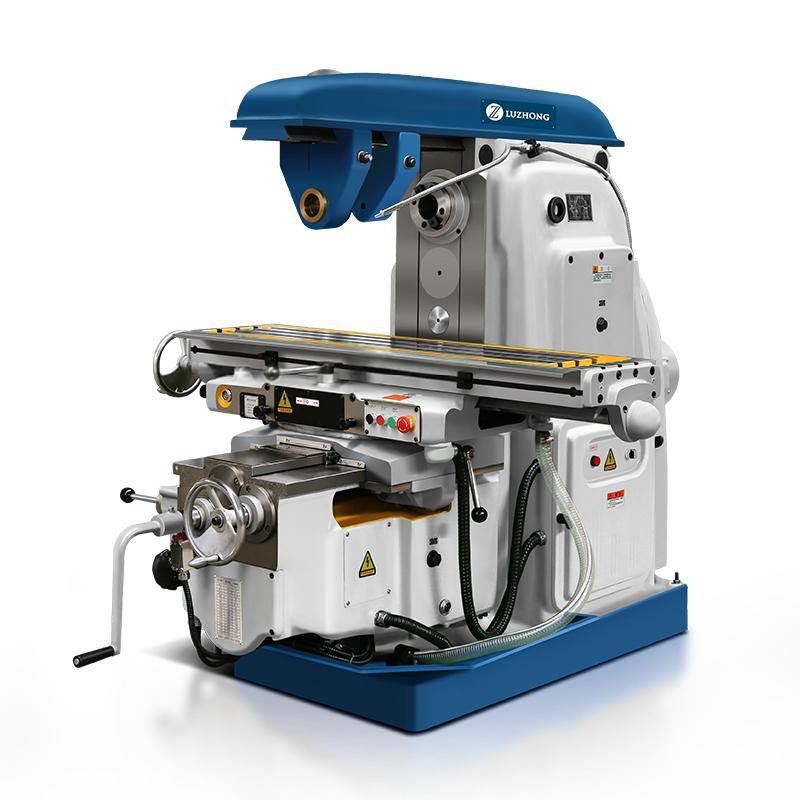

X6140 Horizontal Milling Machine
MACHINE description
|
Specifications |
Units |
X6140 |
|
Table size |
mm |
1700×400 |
|
Table load |
kg |
800 |
|
T slot(number-width-pitch) |
mm |
3-18-90 |
|
Table travel |
mm |
900/880 315/300 350/330 |
|
Range of table feed |
mm /min |
XY:23.5-1180 Z:8-394 |
|
Rapid speed of table |
mm /min |
XY:2300 Z:770 |
|
Spindle taper |
- |
ISO50 7:24 |
|
Spindle speed range |
rpm |
30-1500(18 steps) |
|
Swivel angle oftable |
° |
±45 |
|
Distance between spindleaxisand table surface |
mm |
30-380 |
|
Spindle motor power |
kw |
11 |
|
Feed motor power |
kw |
1.5 |
|
Weight |
kg |
3950/4200 |
|
Overall dimension |
mm |
2560×2160×2100 |
