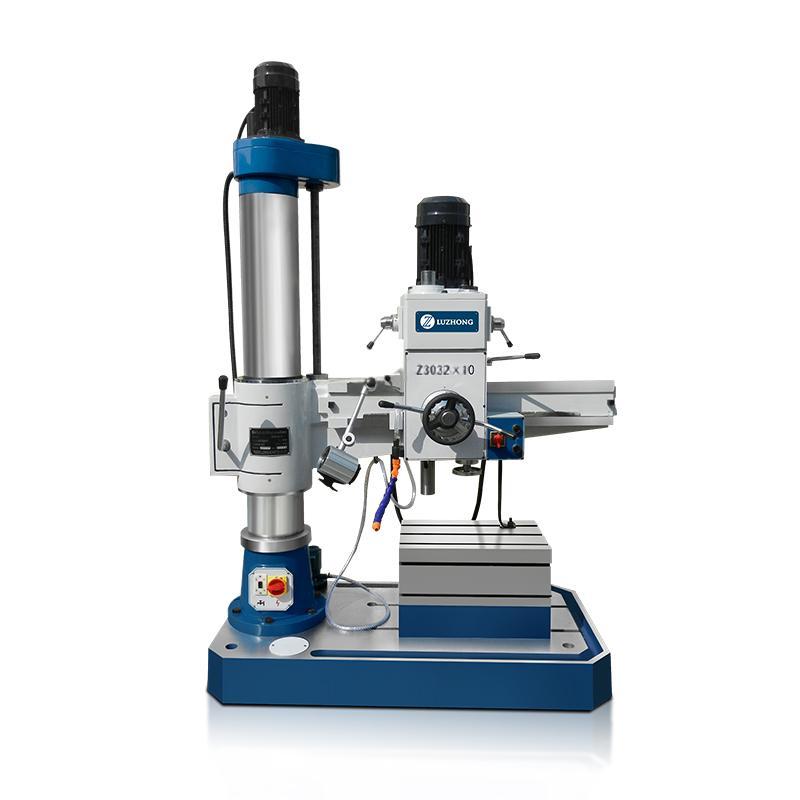

Z3032X10 Radial Drilling Machine
from /month
MACHINE description
|
Specifications |
Units |
Z3032×10 |
|
Max. drilling diameter |
mm |
Φ32 |
|
Column diameter |
mm |
200 |
|
Distance of headstock horizontal movement |
mm |
710 |
|
Distance spindle nose and working surface of base |
mm |
330-1060 |
|
Rocker arm lift distance |
mm |
730 |
|
Spindle travel |
mm |
120 |
|
Spindle taper |
MT4 |
|
|
Spindle speeds range |
r/min |
1081622623986651000（6 steps） |
|
Spindle feeding range |
mm/r |
0.100.160.25（3 steps） |
|
Max. spindle allows feed resistance |
N |
5300 |
|
Rocker arm lifting speeds |
m/min |
1.21 |
|
Rocker rotary angle |
° |
+90° |
|
Main motor power |
kw |
1.5/2.2 |
|
Lifting motor power |
kw |
0.55 |
|
Cooling pump motor power |
kw |
0.04 |
|
Net weight |
kg |
1080 |
|
Overall dimensions（L×W×H） |
mm |
1400×660×2060 |
