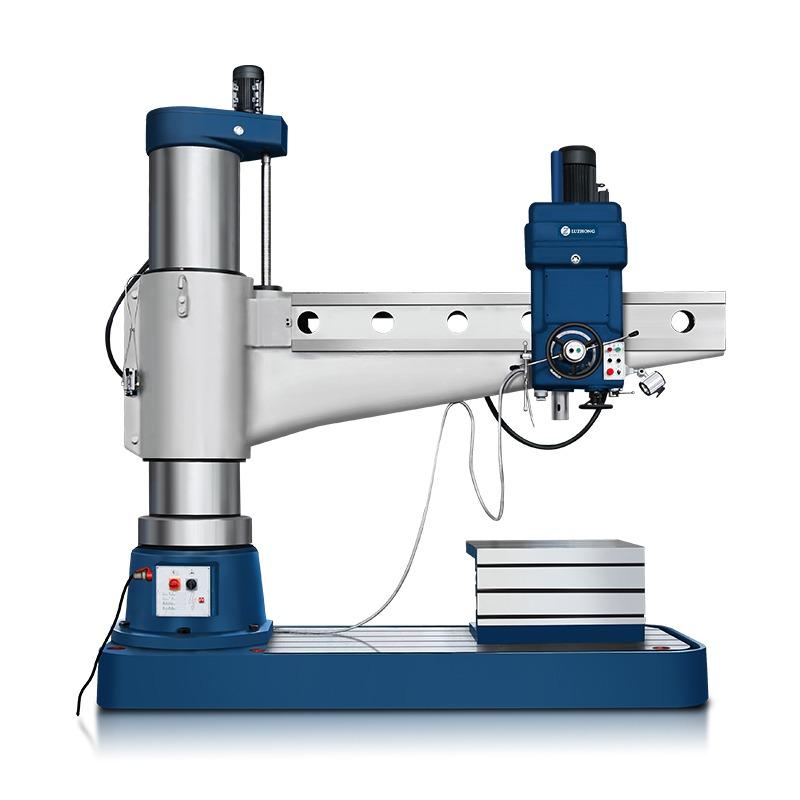

Z30100X31 Radial Drilling Machine

specifications

Z30100x31

Max. drilling diameter(mm)

100

Distance between spindle axis and column surface(mm)

570-3150

Distance form spindle nose to table surface(mm)

750-2500

Spindle travel(mm)

500

Spindle taper

NO.6

Spindle speeds range(r/min)

8-1000

Spindle speed step

22

Spindle feeding range(r/min)

0.06-3.2

Spindle feeding step

16

Table size(mm)

1250X800X630

Headstocklevel migration distance(mm)

2580

Max.torque spindle(mm)

2450

Spindle motor power(kw)

15

Racking shaft heave height(mm)

1250

N.W./G.W.

20000kg

Overall dimensions(L*W*H)

4660×1630×4525mm
