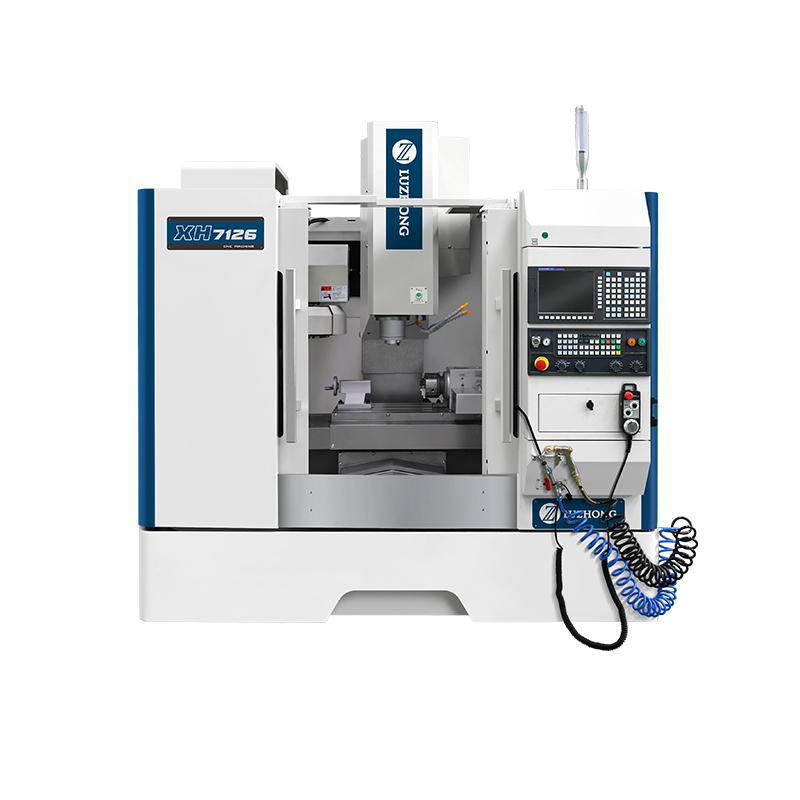

XH7126 Vertical Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
XH7126 |
|
Table size |
mm |
800*300 |
|
X axis travel |
mm |
600 |
|
Y axis travel |
mm |
320 |
|
Z axis travel |
mm |
450 |
|
Max. worktable load |
kg |
300 |
|
T slot(number-width*pitch) |
- |
3-16*80 |
|
Max. spindle speed |
rpm |
8000 |
|
Spindle taper |
BT |
BT40 |
|
Main motor power |
kw |
5.5 |
|
X/Y/Z rapid traverse speed |
m/min |
24/24/20 |
|
Cutting feed speed |
mm/min |
1-10000 |
|
Guide rail type |
- |
Linear rail |
|
Distance from spindle axis to column surface |
mm |
410 |
|
Distance between spindle nose and table surface |
mm |
100-550 |
|
Positioning accuracy |
mm |
±0.0075 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Tool magazine |
- |
Armless 16 |
|
Max. tool diameter |
mm |
φ90 |
|
Max. tool weight |
kg |
8 |
|
Machine weight |
kg |
3000 |
|
Overall dimension |
mm |
1900*1700*2100 |
