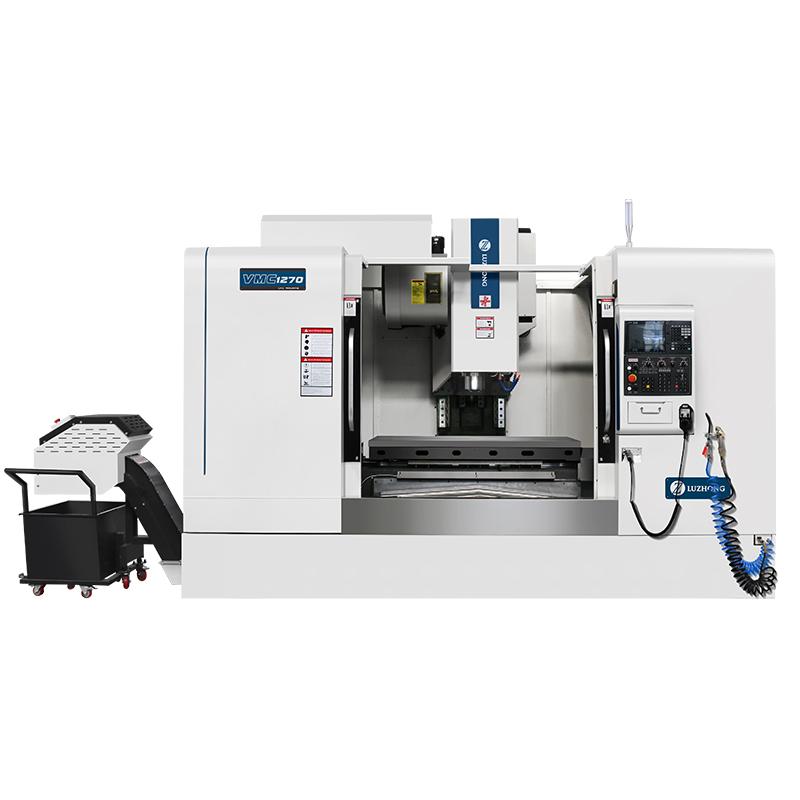

VMC1270 Vertical Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
VMC1270 |
VMC1270 |
|
Table size |
mm |
1260*700 |
1260*700 |
|
X axis travel |
mm |
1200 |
1200 |
|
Y axis travel |
mm |
700 |
700 |
|
Z axis travel |
mm |
700 |
600 |
|
Max. worktable load |
kg |
1000 |
1200 |
|
T slot(number-width*pitch) |
- |
5-18*130 |
5-18*122 |
|
Max. spindle speed |
rpm |
8000 |
6000 |
|
Spindle taper |
BT |
BT40 |
BT50 |
|
Main motor power |
kw |
11/15 |
15/18.5 |
|
X/Y/Z rapid traverse speed |
m/min |
24/24/18 |
24/24/18 |
|
Cutting feed speed |
mm/min |
1-6000 |
1-6000 |
|
Guide rail type |
- |
Linear rail |
X/Y axis linear rail Z axis hard rail |
|
Distance from spindle axis to column surface |
mm |
750 |
780 |
|
Distance between spindle nose and table surface |
mm |
100-800 |
87-687 |
|
Positioning accuracy |
mm |
±0.0075 |
±0.0075 |
|
Repeat positioning accuracy |
mm |
±0.005 |
±0.005 |
|
Tool magazine |
- |
Arm 24 |
Arm 24 |
|
Max. tool diameter |
mm |
78/120 |
112/200 |
|
Max. tool weight |
kg |
18 |
18 |
|
Machine weight |
kg |
8000 |
10000 |
|
Overall dimension |
mm |
3400*2900*3000 |
3400*2900*3000 |
