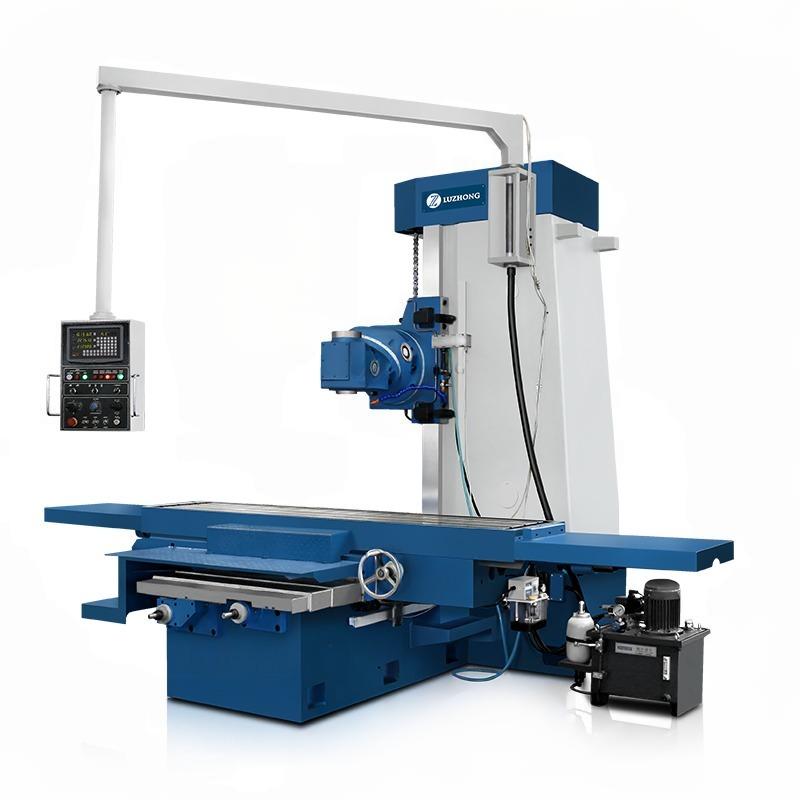

X716 Bed Type Milling Machine
MACHINE description
|
Specifications |
Units |
X716 |
|
Tablesize |
mm |
2500x575 |
|
Tablestroke(X.Y.Z) |
mm |
1800x600x900 |
|
Min. distance from hor. Spindle axis to worktable surface |
mm |
300 |
|
Min. distance from vertical spindle nose to worktable surface |
mm |
49 |
|
Distance from vertical spindle axis to column guide way |
mm |
110 |
|
T-type slot numbers / width /space |
mm |
3-22-152 |
|
Max. load working table |
KG |
3000 |
|
Spindle taper |
ISO50 |
|
|
Longitudinal. transverse feed speed range |
mm/min |
20-2200 |
|
Rapid feed speed (X.Y) |
mm/min |
3000 |
|
Rapid feed speed(Z) |
mm/min |
1800 |
|
Feed speed range |
mm/min |
12-1320 |
|
Spindle speed range |
rpm |
40-1200 |
|
Spindle speed steps |
steps |
12 |
|
Spindlemotor power |
KW |
11 |
|
Overall dimensions |
mm |
4300x3200x3300 |
|
Machineweight |
KG |
10000 |
