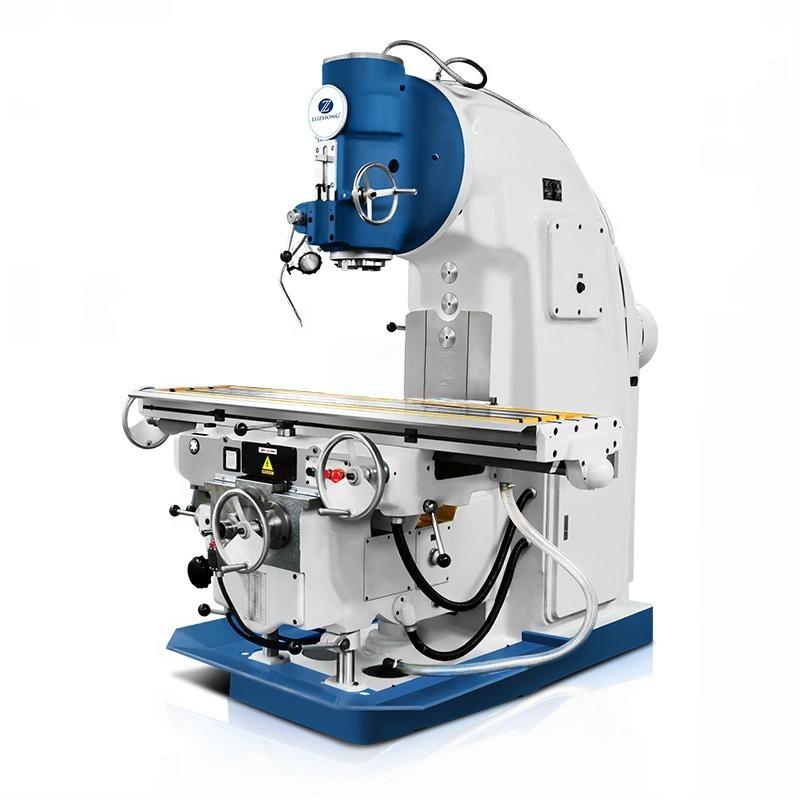

X5040 Vertical Milling Machine
from /month
MACHINE description
|
Specifications |
Units |
X5040 |
|
Table size |
mm |
1700×400 |
|
Table load |
kg |
800 |
|
T slot(number-width-pitch) |
mm |
3-18-90 |
|
Tabletravel |
mm |
900/880 315/300 385/365 |
|
Range of table feed |
mm /min |
XY:23.5-1180Z:8-394 |
|
Rapid speed of table |
mm /min |
XY:2300Z:770 |
|
Spindle taper |
ISO50 7:24 |
|
|
Spindle speed range |
rpm |
30-1500(18 steps) |
|
Swivel angle of vertical milling head |
° |
±45 |
|
Distance between spindle nose and table surface |
mm |
130-515 |
|
Spindle motor power |
kw |
11 |
|
Feed motor power |
kw |
1.5 |
|
Weight |
kg |
4250/4500 |
|
Overall dimension |
mm |
2560×2160×2300 |
