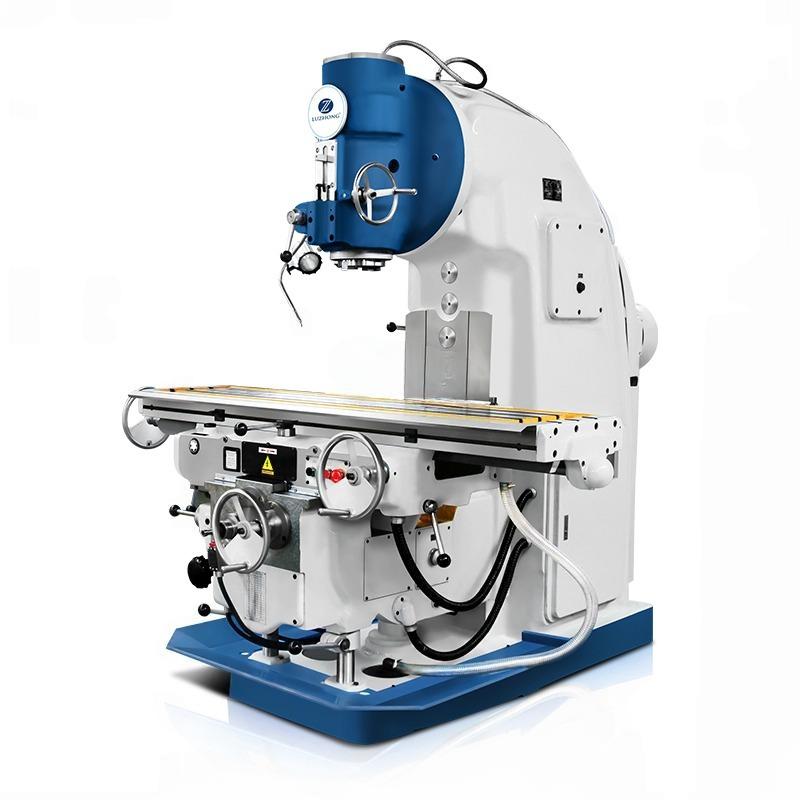

X5032 Vertical Milling Machine
from /month
MACHINE description
|
Specifications |
Units |
X5032 |
|
Table size |
mm |
1325×320 |
|
Table load |
kg |
500 |
|
T slot(number-width-pitch) |
mm |
3-18-70 |
|
Tabletravel |
mm |
700/680 255/240 370/350 |
|
Range of table feed |
mm/min |
XY:23.5-1180 Z:8-394 |
|
Rapid speed of table |
mm/min |
XY:2300 Z:770 |
|
Spindle taper |
ISO50 7:24 |
|
|
Spindle speed range |
rpm |
30-1500(18 steps) |
|
Swivel angle of vertical milling head |
° |
±45 |
|
Distance between spindle nose and table surface |
mm |
45-415 |
|
Spindle motor power |
kw |
7.5 |
|
Feed motor power |
kw |
1.5 |
|
Weight |
kg |
2900/3200 |
|
Overall dimension |
mm |
2300×1770×2000 |
