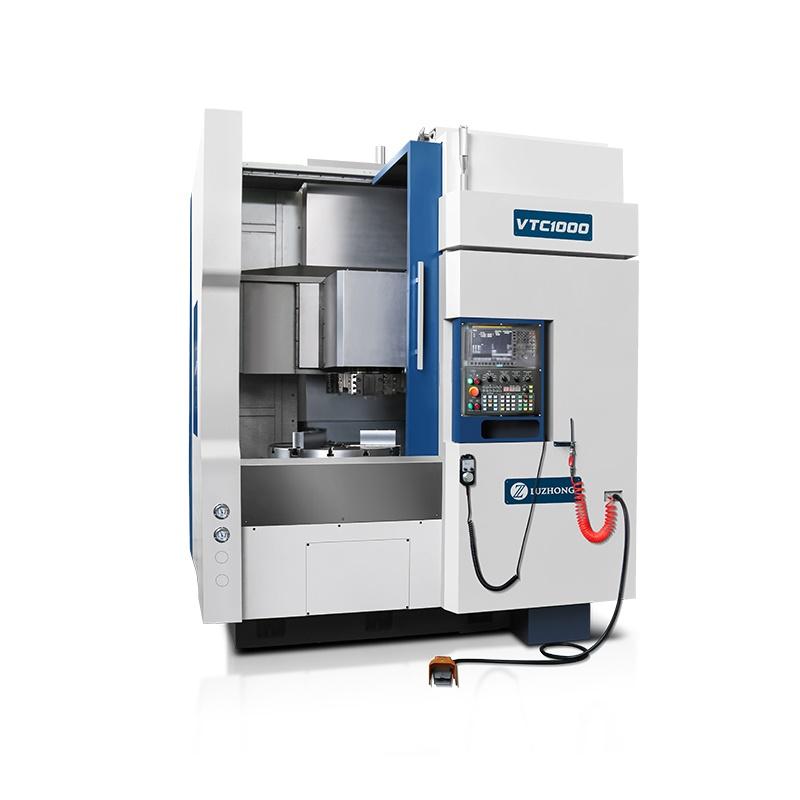

VTC1000 CNC Vertical Lathe Machine
from /month
MACHINE description
|
Specification |
units |
VTC1000 |
|
Max. Swing diameter |
mm |
1000 |
|
Max. Turning diameter |
mm |
850 |
|
Spindle model |
A2-11 |
|
|
Diameter of spindle bearing |
mm |
180 |
|
Spindle speed range |
rpm |
30-800 |
|
Spindle output torque |
nm |
890 |
|
Chuck diameter |
〞 |
32〞HYD |
|
Turret |
Ver.4 position |
|
|
Turret spec |
125 |
|
|
Tool size |
mm |
□32/φ50 |
|
Turret travel X axis |
mm |
-600 |
|
Turret travel Z axis |
mm |
800 |
|
Distance from bottom of turret to up of chuck |
mm |
0-800 |
|
X/Z linear rails |
55 roller |
|
|
Diameter of X/Z screw |
mm |
φ50/φ40 |
|
X axis rapid traverse |
m/min |
15 |
|
Zaxis rapid traverse |
m/min |
12 |
|
Cutting feed |
m/min |
0.1-5000 |
|
X axis motor power/torque |
Kw/nm |
3.5/22 |
|
Zaxis motor power/torque |
Kw/nm |
3.5/22 |
|
Main motor power/torque |
Kw/nm |
30/37- 356 |
|
Overall size (L*W*H) |
m |
2.6×2.35×3.15 |
|
Machine weight |
kg |
10500 |
