| SPECIFICATIONS |
Units |

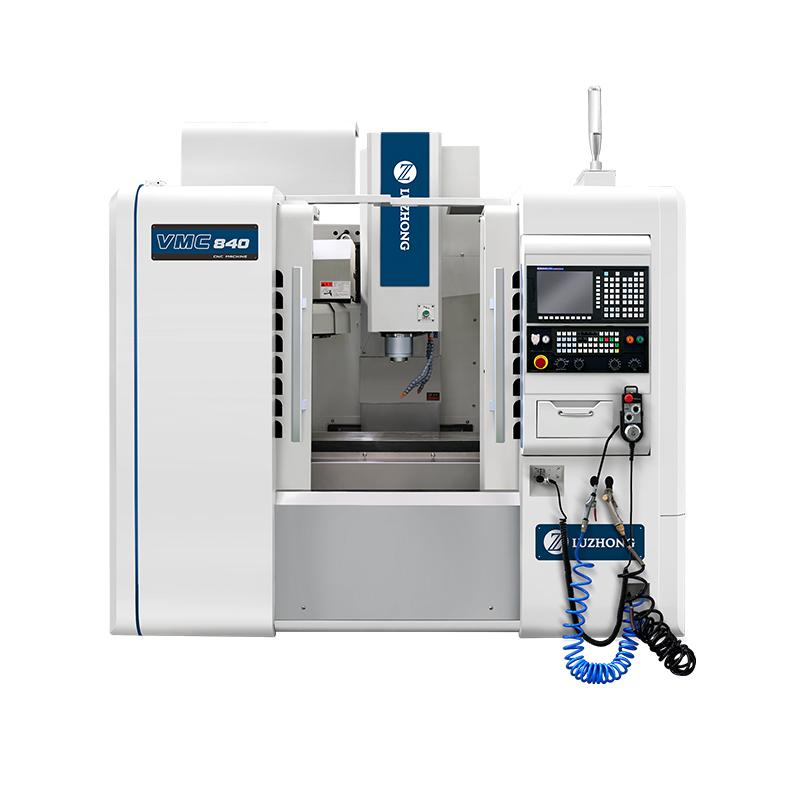

VMC840 |
| Table size |
mm |
900*450 |
| X axis travel |
mm |
800 |
| Y axis travel |
mm |
400 |
| Z axis travel |
mm |
500 |
| Max. worktable load |
kg |
450 |
| T slot(number-width*pitch) |
- |
3-18*130 |
| Max. spindle speed |
rpm |
8000 |
| Spindle taper |
BT |
BT40 |
| Main motor power |
kw |
5.5 |
| X/Y/Z rapid traverse speed |
m/min |
24/24/20 |
| Cutting feed speed |
mm/min |
1-10000 |
| Guide rail type |
- |
Linear rail |
| Distance from spindle axis to column surface |
mm |
520 |
| Distance between spindle nose and table surface |
mm |
130-630 |
| Positioning accuracy |
mm |
±0.0075 |
| Repeat positioning accuracy |
mm |
±0.005 |
| Tool magazine |
- |
Armless 16 |
| Max. tool diameter |
mm |
φ90 |
| Max. tool weight |
kg |
8 |
| Machine weight |
kg |
4200 |
| Overall dimension |
mm |
2500*2050*2550 |
