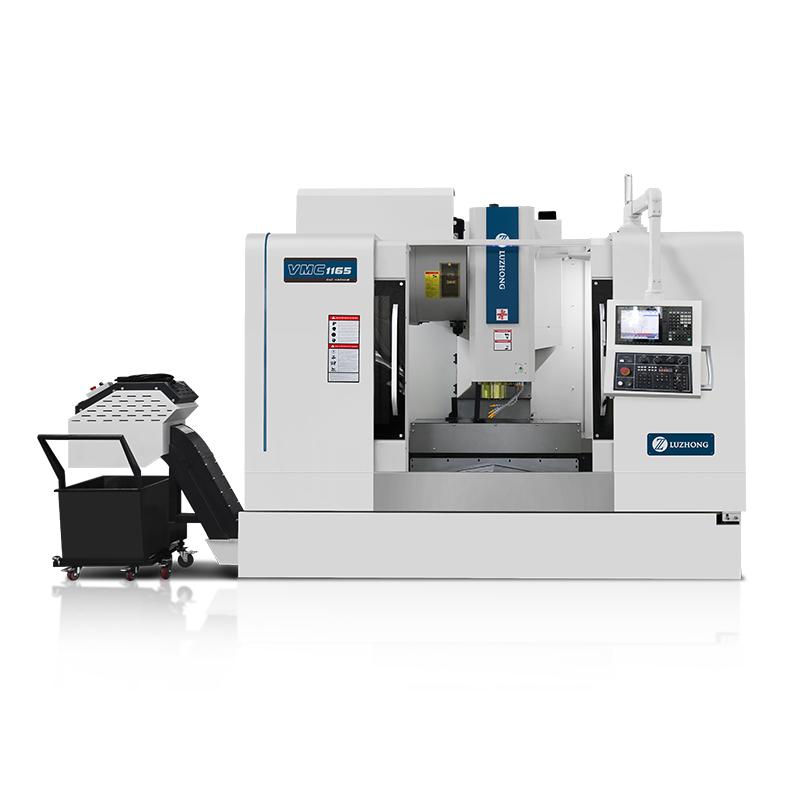

VMC1165 Vertical Machining Center

SPECIFICATIONS

Units

VMC1165

Table size

mm

1200*600

X axis travel

mm

1100

Y axis travel

mm

650

Z axis travel

mm

600

Max. worktable load

kg

1000

T slot(number-width*pitch)

-

5-18*125

Max. spindle speed

rpm

8000

Spindle taper

BT

BT40

Main motor power

kw

11

X/Y/Z rapid traverse speed

m/min

24/24/20

Cutting feed speed

mm/min

1-6000

Guide rail type

-

Linear rail

Distance from spindle axis to column surface

mm

665

Distance between spindle nose and table surface

mm

120-720

Positioning accuracy

mm

±0.0075

Repeat positioning accuracy

mm

±0.005

Tool magazine

-

Arm 24

Max. tool diameter

mm

78/120

Max. tool weight

kg

8

Machine weight

kg

7200

Overall dimension

mm

3400*2550*2960
