Introduction

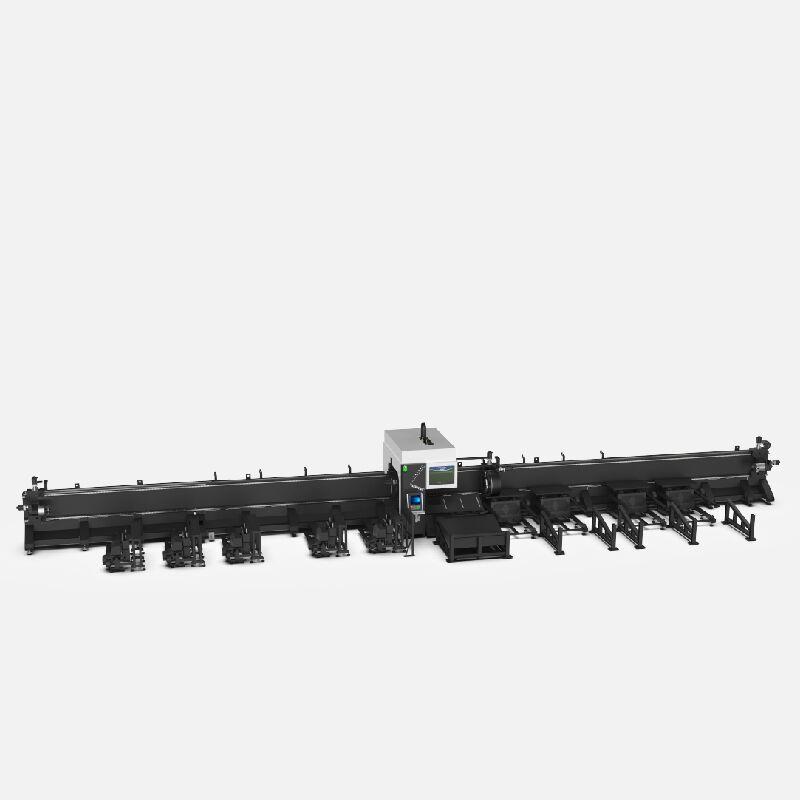

12050HT born for cutting large, heavy and long tubes. We offer special side-attached machine tool and automatic loading & unloading devices. That is why this machine covers a relatively large area. So, it is recommended to heavy industries requiring large-sized equipment like engineering, heavy and construction machinery.
Advantages OF TUBE LASER CUTTER SF12050HT

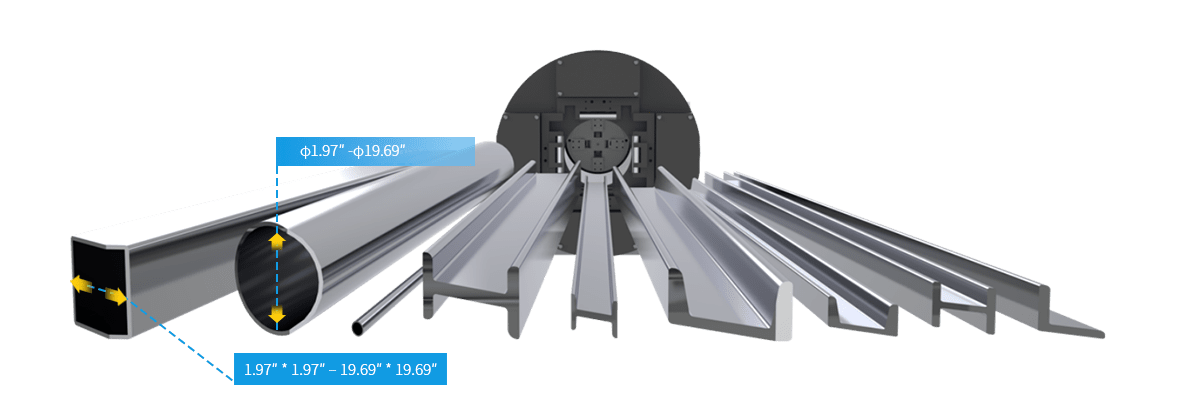

Wide Range of Processing Capability
- Length: 39′
- Diameter ofRound Tube：φ1.97″ -φ19.69″
- Diameter of Square Tube：1.97″ * 1.97″ – 19.69″ * 19.69″
- Max Weight of Tube：2000kg
Fast and accurate tube cutting
Raycus laser source and self developed laser cutting head,a greatcombination for stable performance with top cutting speed. Advanced CNC bus system applied to 4-chuck delivering structure, work with Tubest 3D nesting software, it will achieve most efficiency and minimum waste.
Main Configuration OF TUBE LASER CUTTING MACHINE SF12050HT

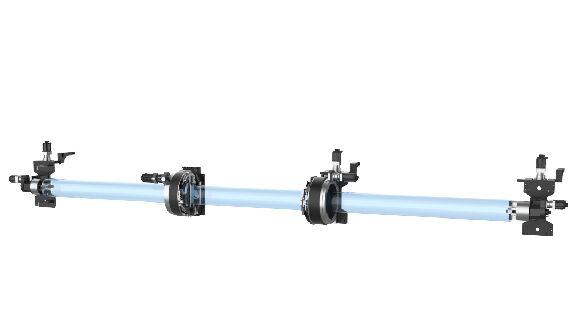

Four-Chuck Clamping
Four pneumatic chucks empowers the tube cutter with big clamping force, to clamp heavy tubes stably and easily. Four chucks can achieve cutting in reversed ways to realize the whole pipe processing of long tubes and achieve zero tailings for larger material utilization and cost-saving. The chuck adopts a pneumatic self-centering structure, with greater clamping force and fast clamping speed. With the strong clamping force, there would be no loosening or slipping of the heavy pipe, which can achieve more stable feeding and more precise cutting.

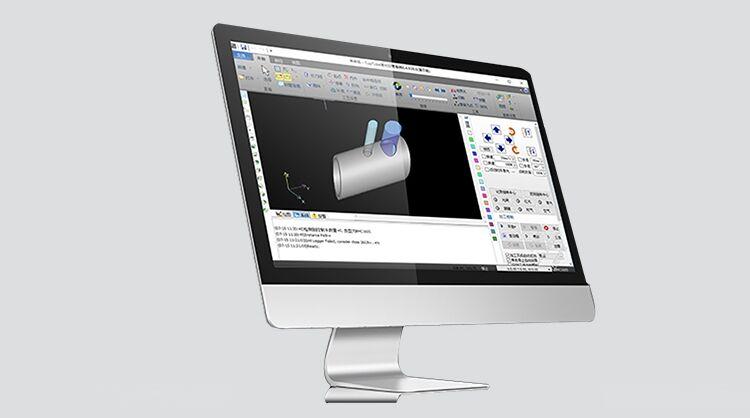

Tubepro Tube Cutting Software + Tubest Nesting Software
FSCUT5000A is a bus control system that is specially developed for tube processing, especially suitable for four-chuck tube cutter. It supports the cutting of round tube, square tube, rectangular tube, L shaped steel, U shaped steel and H shaped steel with high-precision and high-efficiency.
TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.

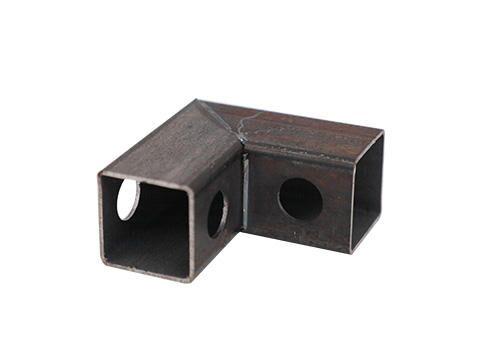

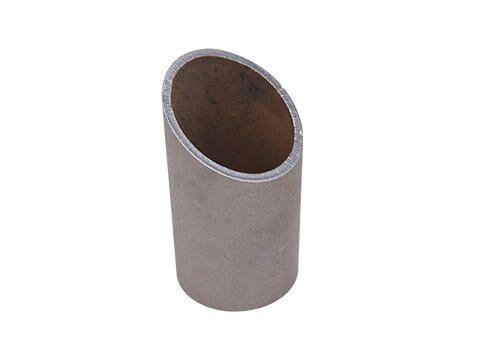

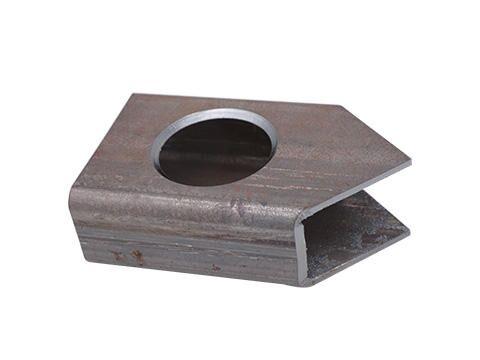

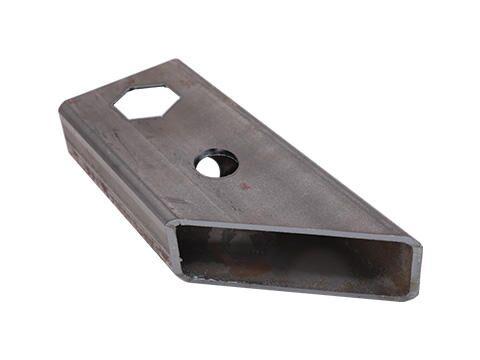

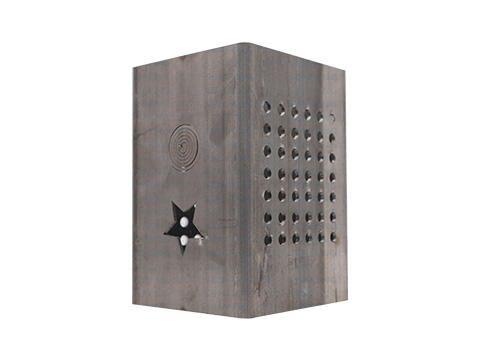

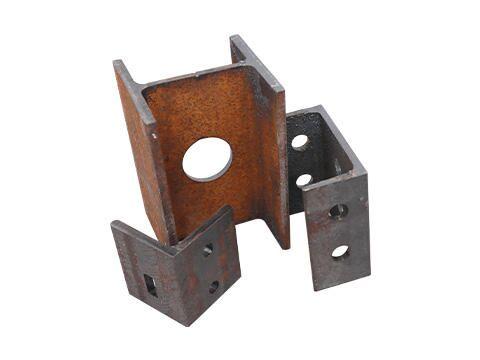

CUTTING SAMPLES
Cutting material: Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel, electrolytic steel, titanium alloy, manganese alloy, etc
Ultra heavy tube cutting machine is widely used in aerospace, metal fabrication, machine manufacturing, rail transport, automobile manufacturing and food machinery.
