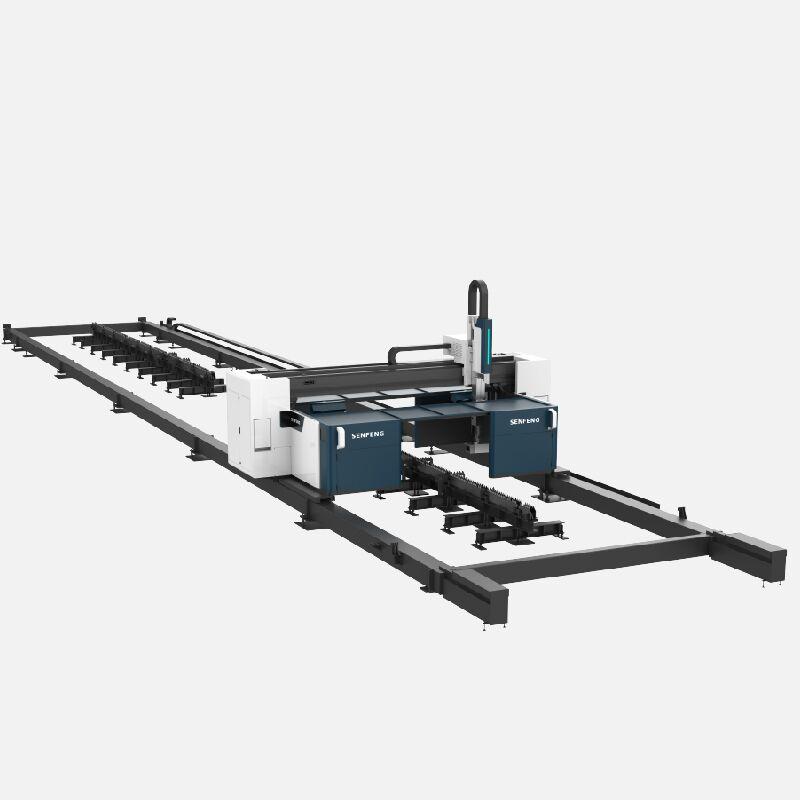

High Profile Cutting Ability
The machine, special for H-shaped steel, adopts gantry dual-driven structure to exert uniform force on beam and keep it hard to deform. It fits for large-format sheets. Both straight cutting and beveling are within its work scope.

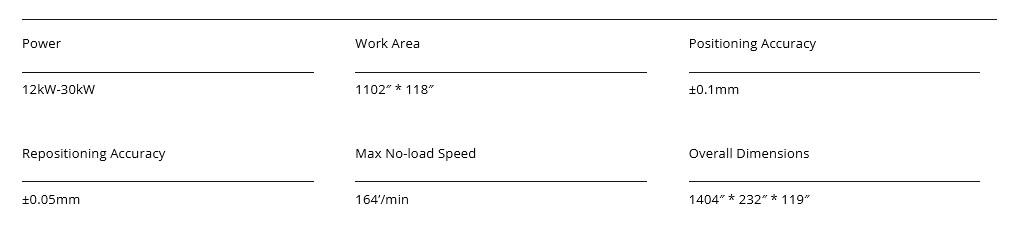

- Laser power: 12-30kW
- Working area: 1102″ * 118″

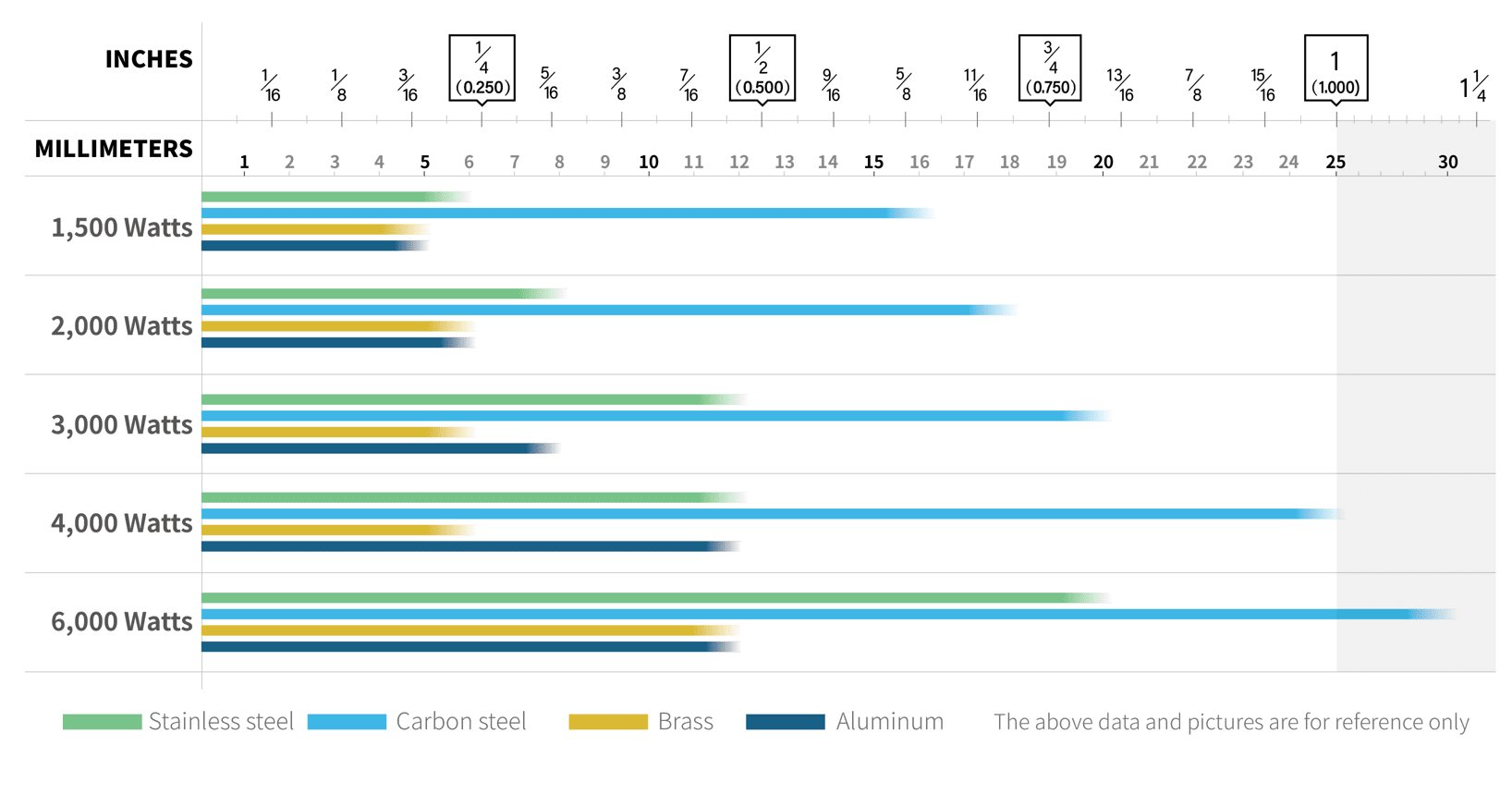

- Max cutting thickness: 1.38″ – 1.97″
Special CNC System
The system is easy to be installed and operated. With visual operating interface, users can change technical parameters directly. It is also compatible with all Tekla architecture software and allows function upgrades as needed.
- Intelligent nesting
- Content-rich cutting database
- Export of work report
- Automatic detection of workpiece contour

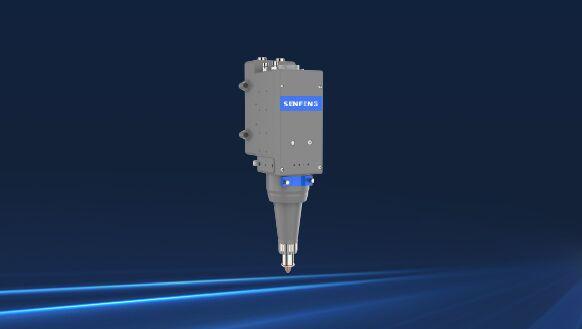

Self-developed Laser Cutting Head
This compact-sized head is designed for H-shaped steel, with integral cooling mode. Its unibody helps to lower demands on machine tool’s mechanical strength.
* QR code
Technical navigation available to lower its dependence on technicians
* Cut high-reflectivity materials
Brass, AL alloy, stainless steel, galvanized sheet, etc.

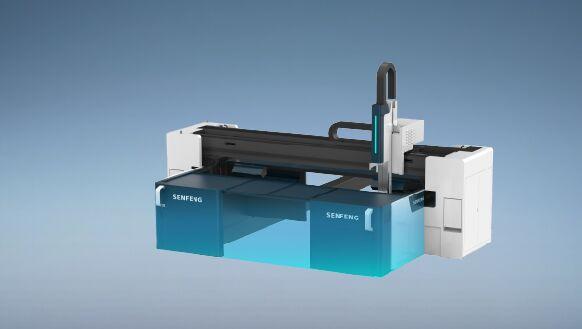

Put Work Convenience First
Designed as open-style, the machine takes into account of user’s cutting comfort. After being upgraded in design and functions, it can provide users with efficient, convenient and hassle-free service.

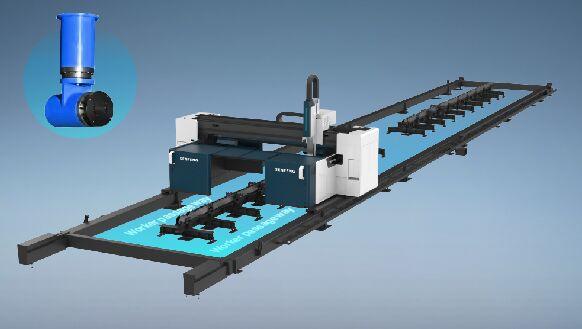

* A and B rotating axes
Swing angle ±180°, crash-proof and fast-response

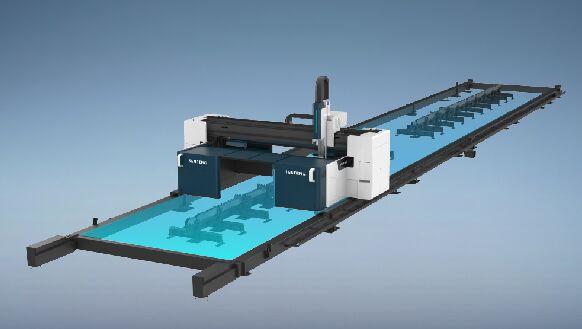

* Dual stations
Size-wise customization to make loading & unloading easier
* Worker passageway
Facilitate workers to enter in platform for loading & unloading
Custom-made Platforms
To cut various workpieces, we offer three kinds of optional accessories. Cutting is done on one side and loading & unloading are on the other side. In this way, work efficiency will be greatly enhanced.
- 2 sets of H-shaped steel support platforms
- 2 sets of sheet cutting platforms
- 2 sets of H-shaped steel+sheet cutting platforms
