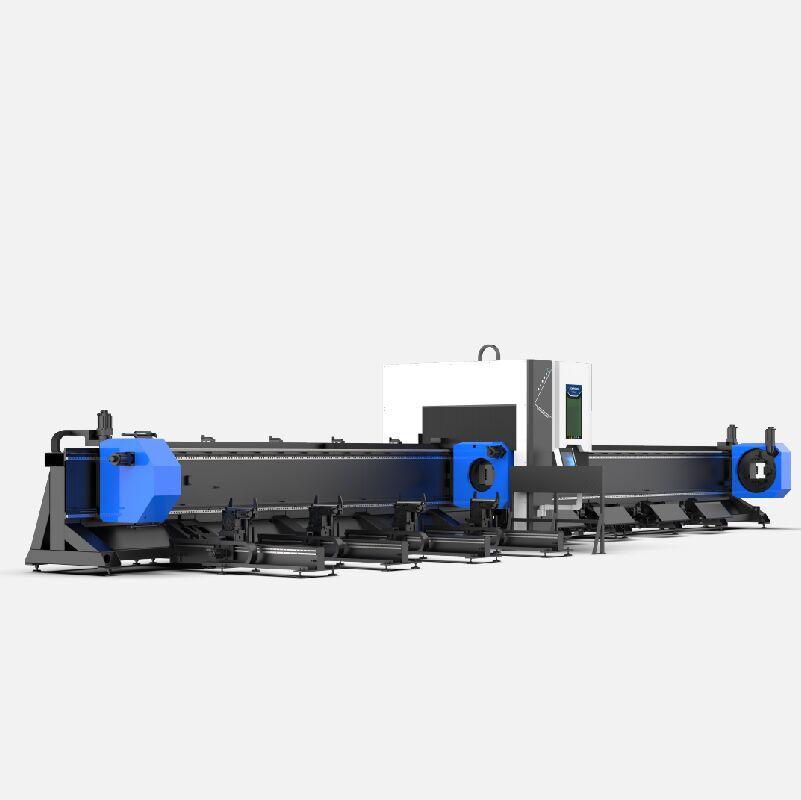

Three-chuck Heavy-duty Tube Laser Cutting Machine ST Series

from /month

MACHINE description

COMES WITH?

  • Intelligent bus-based CNC system
  • Autofocus laser cutting head
  • Three high-precision chucks
  • Side-attached heavy-duty machine tool
  • Laser generator with 75μm fiber core
  • Automatic unloading device
  • 2-year warranty period
  • 24/7/365 technical support

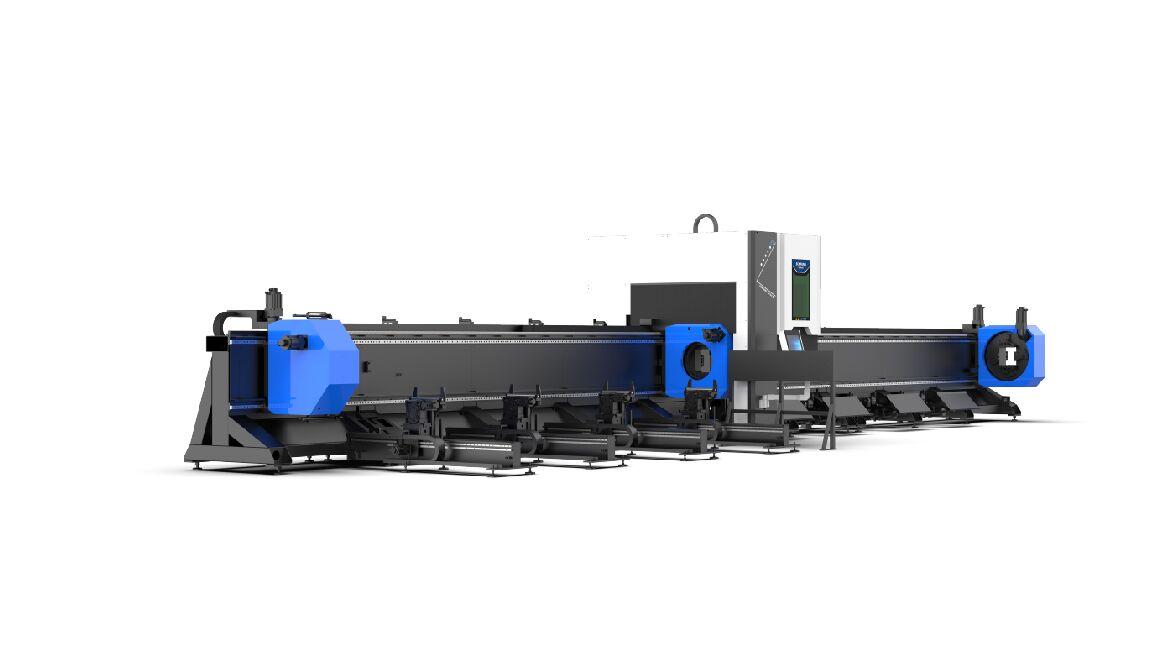

Three-chuck Heavy-duty Tube Laser Cutting Machine ST Series

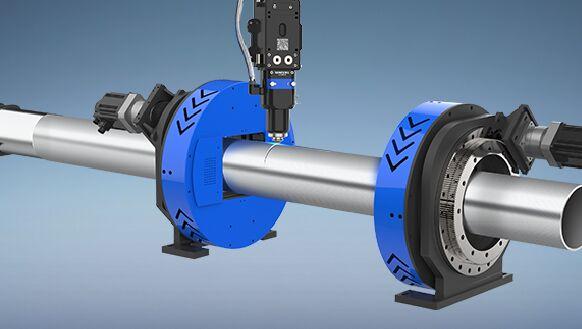

Three Chucks with Zero Tailing

Three full-stroke chucks can correct tube deformation to make cutting precision high and detect tube position in real time. Due to 7-axis linkage, zero tailing is made possible to maximize material utilization.

  • Max load: 2000kg
  • Max clamping length: 472.44″

Three Chucks with Zero Tailing

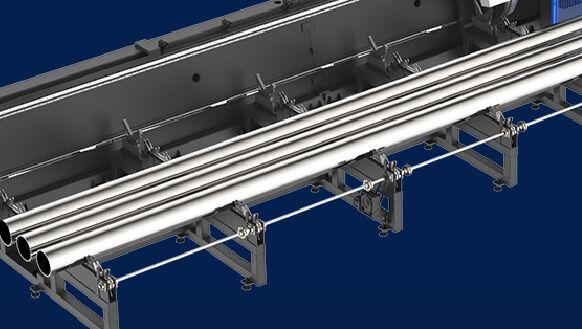

Auto Loading & Unloading Devices

The servo-controlled devices may adjust tube support height and make tube and chucks center coaxial according to tube size. No impact on machine body while cutting heavy tubes.

  • Follow-up support with no tube sagging
  • Sectional structure to fit for tubes of different lengths

Auto Loading & Unloading Devices

Make the Best Use of Raw Materials

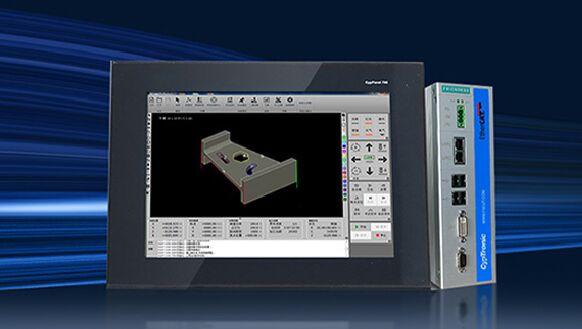

With optimal algorithms, this automatic nesting software can nest tubes as much as possible. Users are entitled to change cutting order and optimize cutting path to reduce waste and maximize tube utilization.

  • Automatic programming
  • High-efficient nesting
  • A wealth of typesetting modes

Make the Best Use of Raw Materials

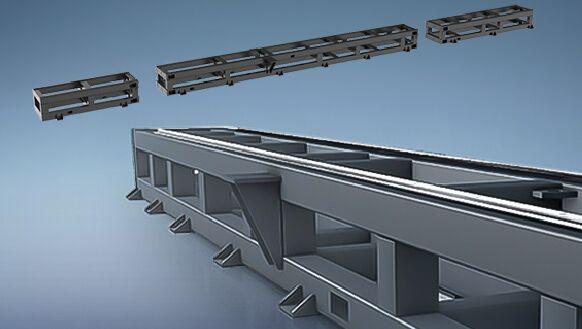

Side-attached Machine Tool

Its triangular structure is featured by high stability, large load capacity and good vibration reducing performance after going through fine welding, annealing stress relief, secondary aging treatment and precision finishing.

  • Three sections

Spliced together for easy replacement as needed

  • Lifting holes

Facilitate to move and save transport costs

Side-attached Machine Tool

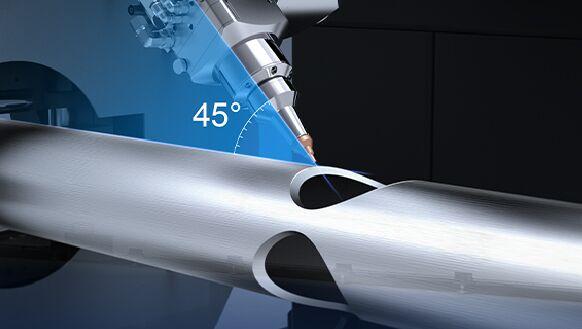

Cut Tubes into ±45° Bevel (Optional)

With right-angled cutting head, swing angle will be accurately controlled and gas flow output is monitored in real time. In doing so, the gas flow can center on metal surface to make cutting section better.

  • Autofocus
  • Auto obstacle avoidance
  • Smart temperature/gas leakage detection

Cut Tubes into ±45° Bevel (Optional)

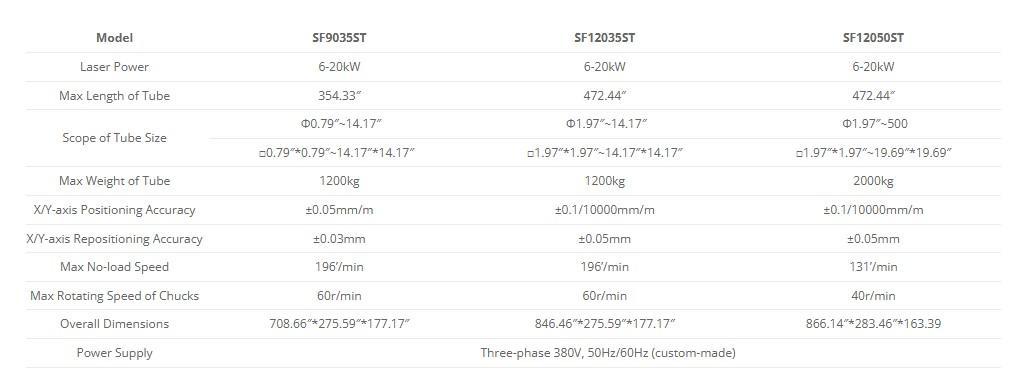

PARAMETERS

Three-chuck Heavy-duty Tube Laser Cutting Machine ST Series - parameters

CUTTING CAPACITY

Cutting Capacity
