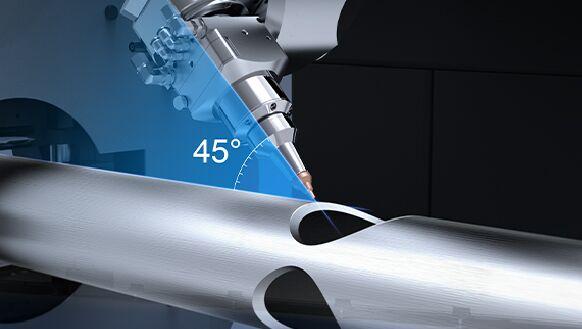

Cut Tubes into ±45° Bevel
This right-angled cutting head can take accurate control of its swing angle and monitor its gas flow output in real time. As thus, the gas flow will concentrate on metal surface to make beveling section better.
- Autofocus
- Auto obstacle avoidance
- Smart temperature/gas leakage detection
Various Cutting Crafts

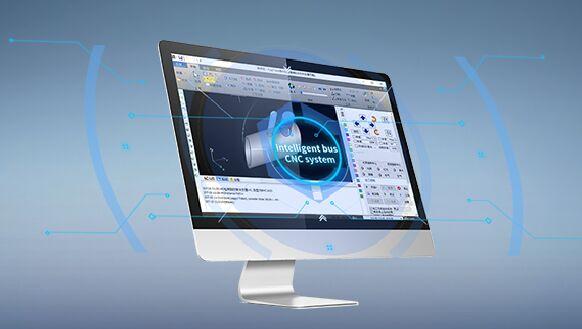

Intelligent bus-based CNC system is outfitted with content-rich cutting database that offers a wealth of crafts. Automatic nesting software is also available to enable quality cutting of common and special-shaped tubes.
* Auto center search * Eccentricity compensation * Co-edge cutting
* Corner cutting * Drawing imports in batch * Auto plotting
* Cutting path editing * Welds compensation

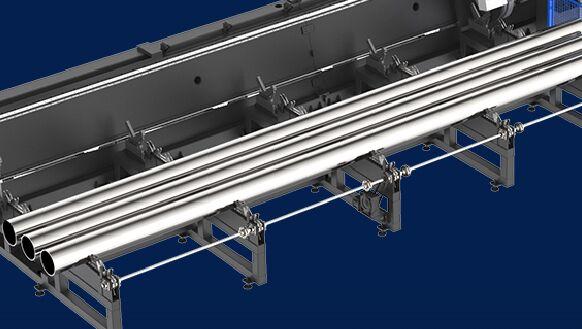

High Degree of Automation
The machine comes standard with turning plate as unloading device to unload 3m long tube. Users may apply for semi-/fully-automatic loading devices as optional accessories, so as to reduce labor intensity during work.
- Servo control
Avoid tube sagging’s effect on cutting precision
- Automatic separation
Separate scraps and finished products automatically with no manual intervention

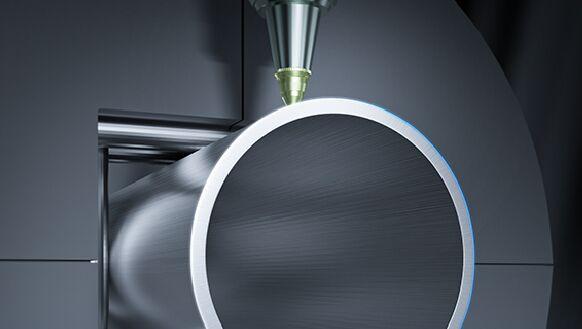

Two High-precision Pneumatic Chucks
The self-centering chucks can clamp tubes at constant but adjustable clamping force. Large tube is clamped stably and small tube will remain unchanged in shape.
- Auto obstacle avoidance
- Short tailing
- Dust-proof sealstructure
- Auto removal of cuttings

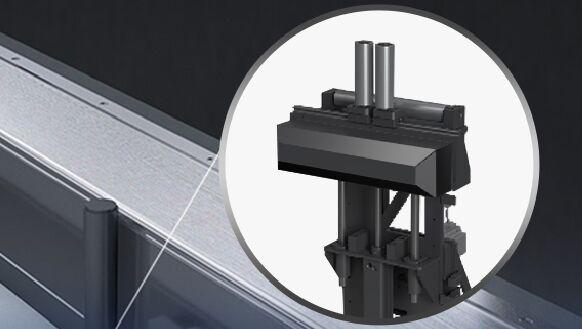

Follow-up Support
The support is servo-controlled and move along with rotating tube by clinging to its surface. It is designed as segmented, so tube will not shake while being cut at fast speed. In this way, precision is not affected by long tube sagging.
