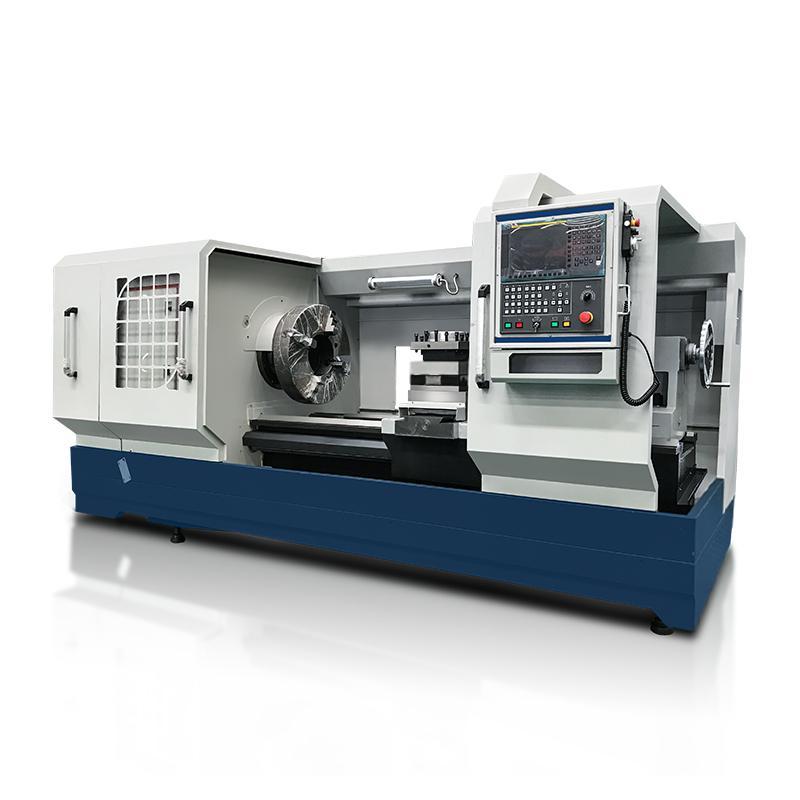

QK1325 CNC Pipe Threading Lathe Machine
MACHINE description
|
SPECIFICATION |
Units |
QK1325 |
|
Swing over bed |
mm |
800 |
|
Swing over cross slide |
mm |
480 |
|
Distance betweencenters |
mm |
1000/1500/3000 |
|
Pipe threading range |
mm |
120-250 |
|
Guideway width |
mm |
600 |
|
Max. load capacity |
T |
4 |
|
Spindle bore |
mm |
255 |
|
Spindle speed steps |
- |
VF. 4 steps |
|
Spindle speed range |
rpm |
20-420 |
|
Chuck |
mm |
φ630 4-jaw manual |
|
Turret/tool post |
- |
CNC turret 4 position |
|
Tool shank size |
mm |
32 x 32 |
|
X axis travel |
mm |
420 |
|
Z axis travel |
mm |
850/1350/2850 |
|
X axis rapid traverse |
mm/min |
4000 |
|
Z axis rapid traverse |
mm/min |
6000 |
|
Tailstock quill diameter |
mm |
φ120 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kW |
15 |
|
Coolant pump motor |
kW |
0.125 |
|
Weightfor1000 |
kg |
6000 |
|
Weightfor1500 |
kg |
6500 |
|
Weightfor3000 |
kg |
7500 |
|
Dimension for1000 |
mm |
3600x1930x1900 |
|
Dimension for1500 |
mm |
4100x1930x1900 |
|
Dimension for3000 |
mm |
5600x1930x1900 |
