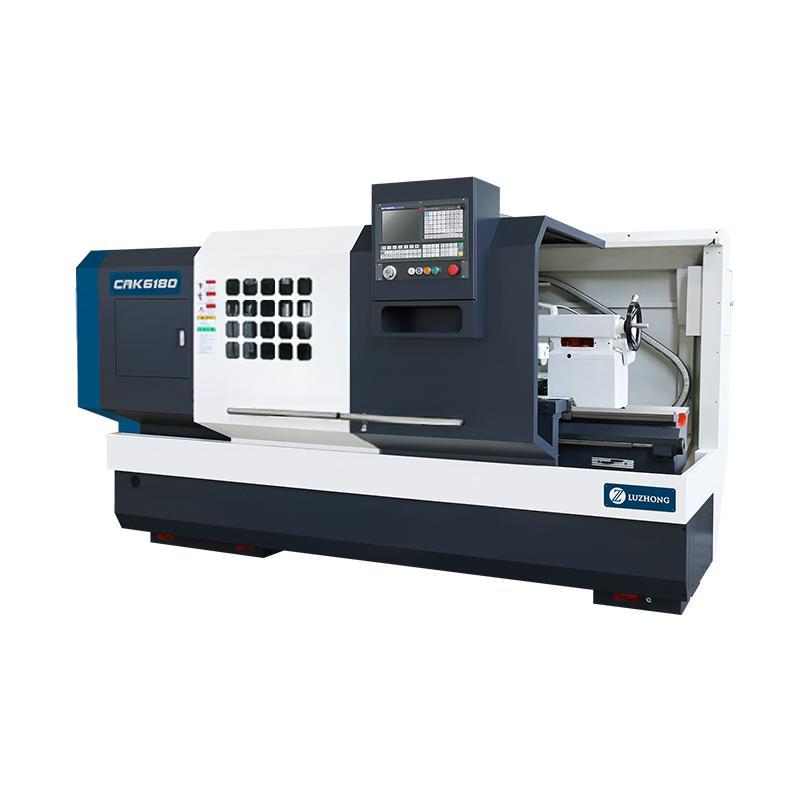

CAK6180 CNC Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
CAK6180CAK6180BCAK6180C |
|
Swing over bed |
mm |
800 |
|
Swing over cross slide |
mm |
520 |
|
Distance between centers |
mm |
750/1000/1500/2000/3000 |
|
Spindle bore |
mm |
52,(80 for B),[105 for C] |
|
Spindle bore taper |
- |
MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
|
Spindle nose type |
- |
C6,(D8 for B),[D8 for C] |
|
Spindle speed steps |
- |
Manual 3 steps (Optional: stepless) |
|
Spindle speed range |
rpm |
21-150,66-500,162-1500 (Optional: 100-1600 ) |
|
Turret/tool post |
- |
Eletric4 position |
|
Tool size |
mm |
25 x 25 |
|
X axis travel |
mm |
400 |
|
Z axis travel |
mm |
750/1000/1500/2000/3000 |
|
X axis rapid traverse |
mm/min |
6000 |
|
Z axis rapid traverse |
mm/min |
10000 |
|
Tailstock quill diameter |
mm |
75 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
150 |
|
Main spindle motor |
kw |
11 |
|
Coolant pump motor |
kw |
0.125 |
|
Weightfor 750 |
kg |
2750 |
|
Weightfor1000 |
kg |
2850 |
|
Weightfor 1500 |
kg |
2950 |
|
Weightfor 2000 |
kg |
3450 |
|
Weightfor 3000 |
kg |
4250 |
|
Dimension for 750 |
mm |
2550x1750x1900 |
|
Dimension for1000 |
mm |
2750x1750x1900 |
|
Dimension for1500 |
mm |
3250x1750x1900 |
|
Dimension for2000 |
mm |
3700x1750x1900 |
|
Dimension for 3000 |
mm |
4710x1750x1900 |
