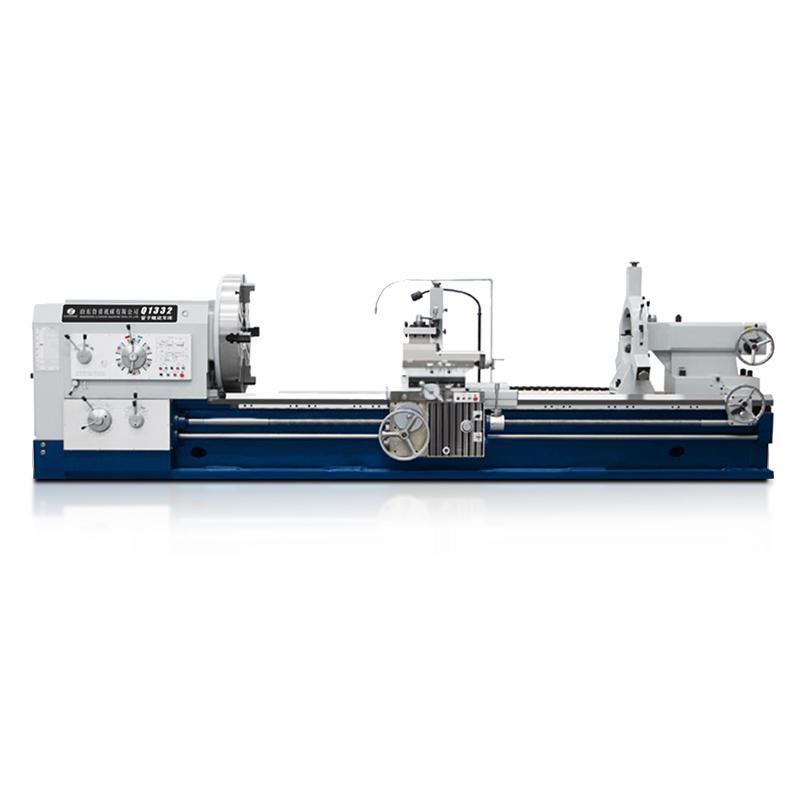

Q1343 Pipe Threading Lathe Machine

SPECIFICATIONS

Units

Q1343

Swing over bed

mm

1000

Swing over cross slide

mm

610

Distance between centers

mm

1500/3000

Pipe threading range

mm

270-430

Guideway width

mm

755

Max. load capacity

kg

6000

Spindle bore

mm

440

Spindle speed steps

-

FWD. 9 steps

Spindle speed range

rpm

4.9-180

Chuck

mm

φ10004-jaw electric

Turret/tool post

-

Manual 4 position

Tool shank size

mm

45 x 45

X axis travel

mm

520

Z axis travel

mm

1350/2850

X axis feedsteps/range

mm/r

32/0.05-0.75

Z axis feedsteps/range

mm/r

32/0.1-1.5

X axis rapid traverse

mm/min

1870

Z axis rapid traverse

mm/min

3740

Metric threadkinds/range

mm

23/1-15

Inch threadkinds/range

T.P.I

22/28-2

Tailstock quill diameter

mm

φ160

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

300

Main spindle motor

kW

22

Rapid traverse motor

kW

1.5

Coolant pump motor

kW

0.125

Weightfor 1500

kg

13000

Weightfor 3000

kg

14500

Dimension for 1500

mm

5000x2100x1700

Dimension for 3000

mm

6500x2100x1700
