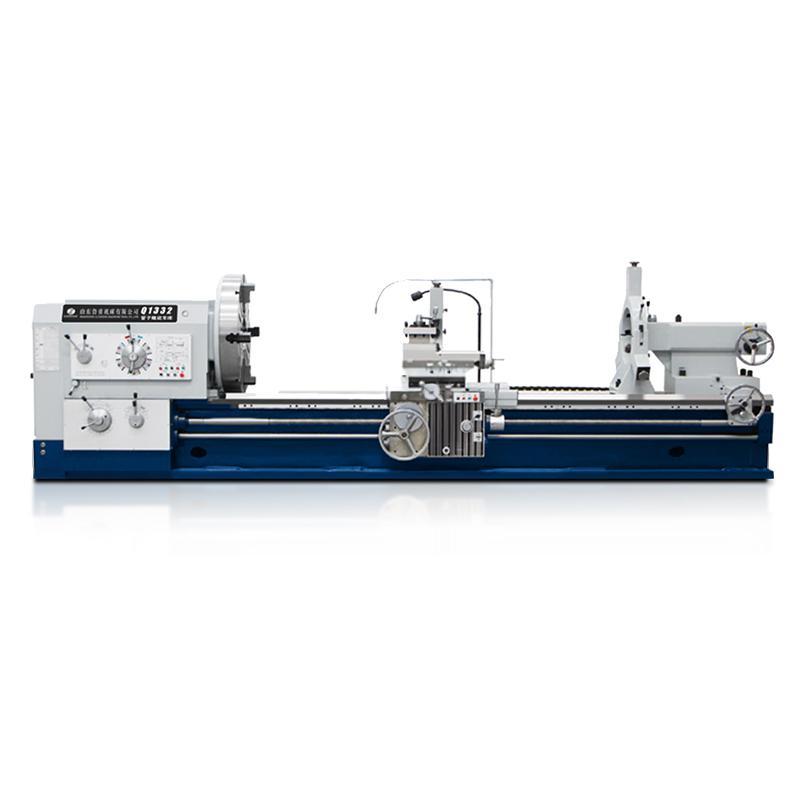

Q1322 Pipe Threading Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
Q1322 |
|
Swing over bed |
mm |
630/800 |
|
Swing over cross slide |
mm |
340/520 |
|
Distance between centers |
mm |
1500/3000 |
|
Pipe threading range |
mm |
50-220 |
|
Guideway width |
mm |
550 |
|
Max. load capacity |
kg |
3000 |
|
Spindle bore |
mm |
230 |
|
Spindle speed steps |
- |
VF. 4 steps |
|
Spindle speed range |
rpm |
20-550 |
|
Chuck |
mm |
φ5204-jaw manual |
|
Turret/tool post |
- |
Manual 4 position |
|
Tool shank size |
mm |
32 x 32 |
|
X axis travel |
mm |
320/420 |
|
Z axis travel |
mm |
1350/2850 |
|
X axis feedsteps/range |
mm/r |
22/0.02-0.45 |
|
Z axis feedsteps/range |
mm/r |
26/0.07-1.33 |
|
X axis rapid traverse |
mm/min |
2300 |
|
Z axis rapid traverse |
mm/min |
4000 |
|
Metric threadkinds/range |
mm |
1-15 |
|
Inch threadkinds/range |
T.P.I |
14-1 |
|
Tailstock quill diameter |
mm |
100 |
|
Tailstock quill taper |
- |
MT5 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kw |
11 |
|
Rapid traverse motor |
kw |
0.3 |
|
Coolant pump motor |
kw |
0.125 |
|
Weightfor 1500 |
kg |
4500 |
|
Weightfor 3000 |
kg |
5700 |
|
Dimension for 1500 |
mm |
3700x1650x1550 |
|
Dimension for 3000 |
mm |
5200x1650x1550 |
