Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

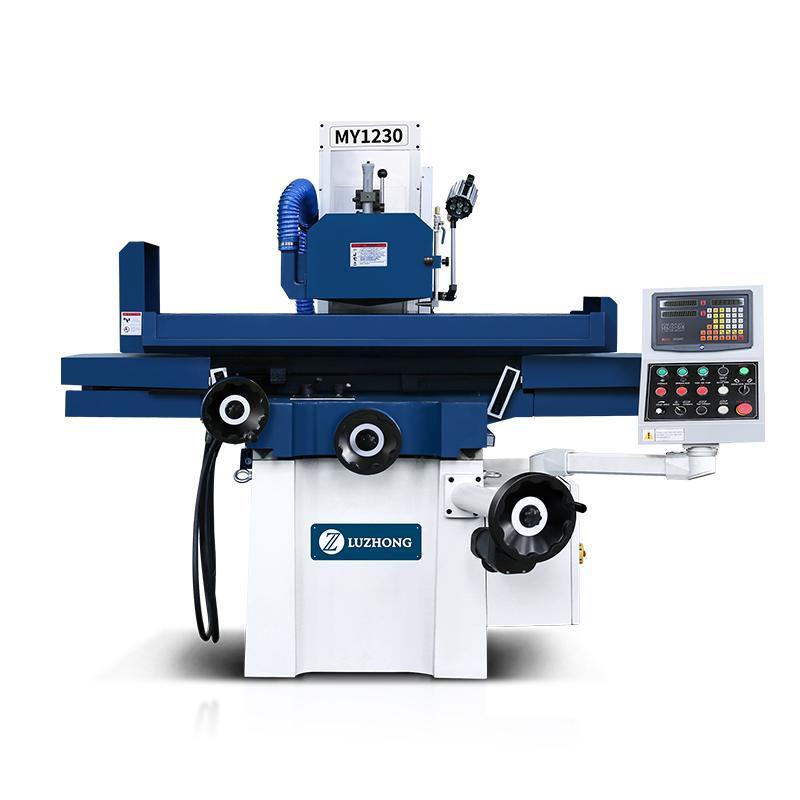

MY1230 Hydraulic Surface Grinding Machine
MACHINE description
| Specifications | Units | MY1230 | ||
| Workbench | Worktable size (L × W) | mm | 750×300 | |
| Max. travel of table | mm | 780×320 | ||
| Table T slot (slot number × slot width) | mm | 1×14 | ||
| Grinding Head | Grinding wheel size (O.D × W × I.D) | mm | Φ300×30×Φ76.2 | |
| Distance spindle center to table | mm | 520 | ||
| Grinding wheel speed | 50Hz | r/min | 1450 | |
| Grinding wheel speed | 60Hz | r/min | 1680 | |
| Feed Amount | Table longitudinal speed | m/min | 3–20 | |
| Transverse feed (handwheel) | Continuous (stepless) | mm/min | 600 | |
| Intermittent (stepless) | mm/times | 0–6 | ||
| Handwheel per turn | mm | 4.0 | ||
| Handwheel per lattice | mm | 0.02 | ||
| Vertical feed (handwheel) | Handwheel per turn | mm | 2.0 | |
| Handwheel per lattice | mm | 0.01 | ||
| Grinding head fast lifting speed (approximate) | mm/min | 360 | ||
| Hydraulic System | Hydraulic motor | kW | 2.2 | |
| Working pressure | Mpa | 4 | ||
| Fuel tank capacity | L | 100 | ||
| Maximum flow rate | L/min | 20 | ||
| Motor Power | Spindle motor | kW | 2.2 | |
| Cooling motor | W | 40 | ||
| Elevator motor | W | 120 | ||
| Working Accuracy | Base parallelism | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| Machine Weight | Net weight | kg | 1400 | |
| Gross weight | kg | 1530 | ||
| External size (L × W × H) | mm | 1960×1480×1850 | ||
| Packing size (L × W × H) | mm | 2000×1640×2020 | ||
