Application：
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

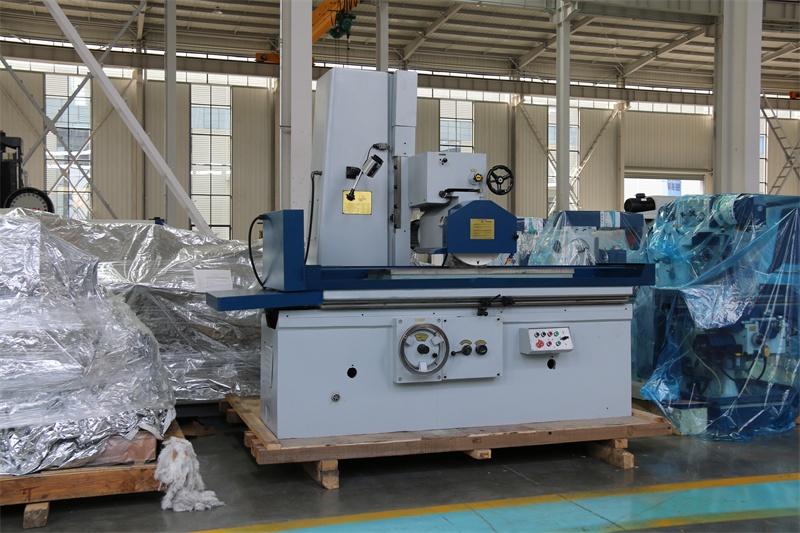

M7130 Hydraulic Surface Grinding Machine
MACHINE description
| Specifications | Unit | M7130A | ||
|---|---|---|---|---|
| Table size | mm | 300×1000 | ||
| Max. size to be ground | mm | 300×1000×400 | ||
| Max. load capacity (with electric magnetic chuck) | mm | 470 | ||
| Max. distance from table surface to spindle center | mm | 575 | ||
| Max. table longitudinal travel | mm | 1100 | ||
| Min. table longitudinal travel | mm | 200 | ||
| Table longitudinal travel speed | m/min | 3–27 | ||
| Table T slot | mm | 3×18 | ||
| Wheelhead cross travel – Continuous feed speed | m/min | 0.5–4.5 | ||
| Wheelhead cross travel – Intermittent feed | mm/t | 3–30 | ||
| Wheelhead vertical travel – Rapid speed | mm/min | 400 | ||
| Wheelhead vertical – Per Rev. feed of handwheel | mm/gra | 0.005 | ||
| Wheelhead vertical – Per Rev. feed | mm | 0.645 | ||
| Wheelhead Motor | Power | kW | 5.5 | |
| Speed | rpm | 1440 | ||
| Total rated power | kW | 11 | ||
| Grinding wheel size (OD × W × ID) | mm | 350×40×127 | ||
| Machine weight | kg | 3500 | ||
CHARACTERISTICS
The main performance characteristics：
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
