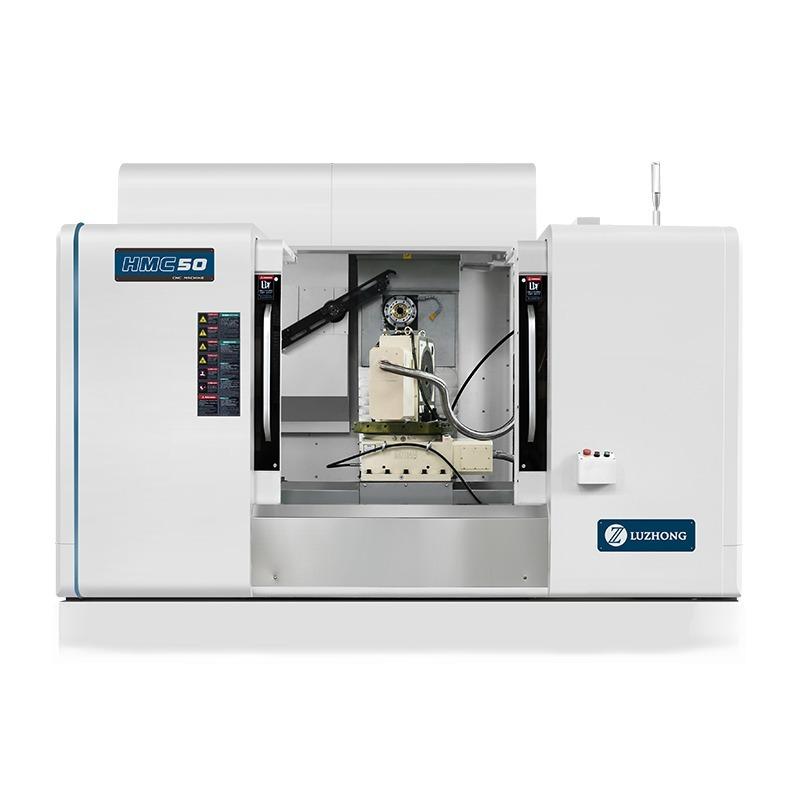

HMC50 Horizontal Machining Center
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
HMC50 |
|
Table size |
mm |
500*500 |
|
X axis travel |
mm |
1100 |
|
Z axis travel |
mm |
600 |
|
Y axis travel |
mm |
700 |
|
Distance from spindle center to table surface |
mm |
145-725 |
|
Distance between spindle nose and table center |
mm |
120-700 |
|
Table quantity |
pcs |
1 |
|
T slot(number-width*pitch) |
mm |
5-18*100 |
|
Max. worktable load |
kg |
500 |
|
Table indexing |
° |
1°*360 |
|
Maximum speed of table |
r/min |
10 |
|
Main motor power |
kw |
11/15 |
|
Spindle taper |
BT40 |
|
|
Max. spindle speed |
rpm |
8000 |
|
Cutting feed speed |
mm/min |
1-10000 |
|
Rapid traverse speed |
m/min |
36/32/32 |
|
Tool magazine |
Arm 24 |
|
|
Max. tool diameter |
mm |
112/200 |
|
Max. tool length |
mm |
400 |
|
Max. tool weight |
kg |
18 |
|
Tool change time (tool to tool) |
sec |
3 |
|
Machine minimum setting unit |
mm |
0.001 |
|
X,Y,Z axis positioning accuracy |
mm |
0.01 |
|
X,Y,Z axis repeat positioning accuracy |
mm |
0.005 |
|
B axis positioning accuracy |
″ |
10″ |
|
B axis repeat positioning accuracy |
″ |
5” |
|
Machine weight |
kg |
7500 |
|
Overall dimension |
mm |
4650*3250*3000 |
