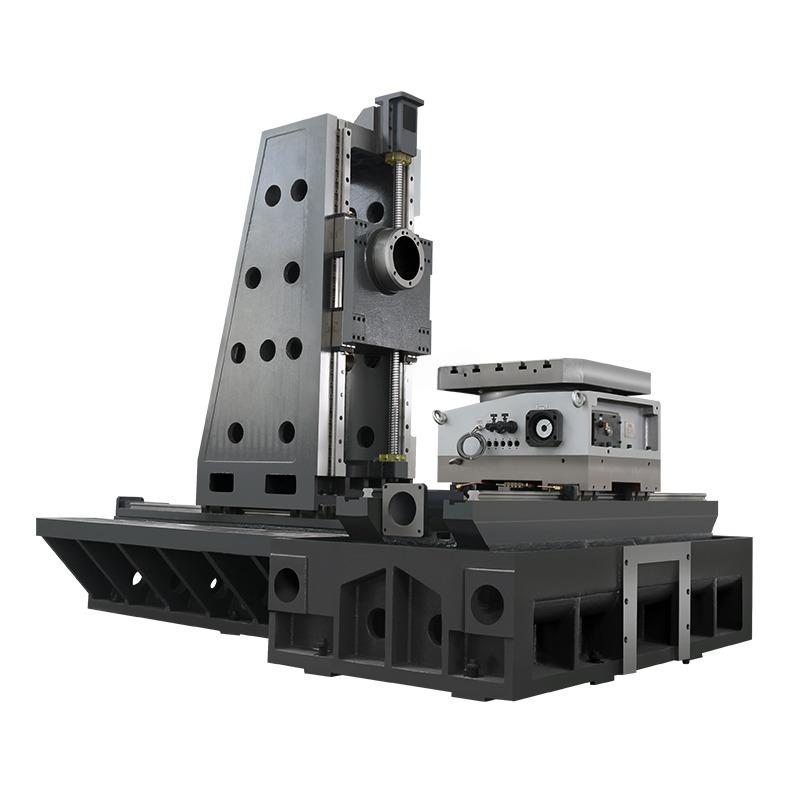

HMC1075 Horizontal Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
HMC1075 |
|
Table size |
mm |
1300*600 |
|
X axis travel |
mm |
1000 |
|
Z axis travel |
mm |
750 |
|
Y axis travel |
mm |
600 |
|
Distance from spindle center to table surface |
mm |
150-900 |
|
Distance between spindle nose and table center |
mm |
90-690 |
|
T slot(number-width*pitch) |
mm |
5-18*100 |
|
Max. worktable load |
kg |
800 |
|
Main motor power |
kw |
7.5/11 |
|
Spindle taper |
BT40 |
|
|
Max. spindle speed |
rpm |
8000 |
|
Cutting feed speed |
mm/min |
1-10000 |
|
Rapid traverse speed |
m/min |
2024/12/24 |
|
Tool magazine |
Arm 24 |
|
|
Max. tool diameter |
mm |
112/200 |
|
Max. tool length |
mm |
400 |
|
Max. tool weight |
kg |
18 |
|
Tool change time (tool to tool) |
sec |
3 |
|
Machine minimum setting unit |
mm |
0.001 |
|
X,Y,Z axis positioning accuracy |
mm |
0.0075 |
|
X,Y,Z axis repeat positioning accuracy |
mm |
0.005 |
|
Machine weight |
kg |
7500 |
|
Overall dimension(L*W*H) |
mm |
4600*3200*3000 |
