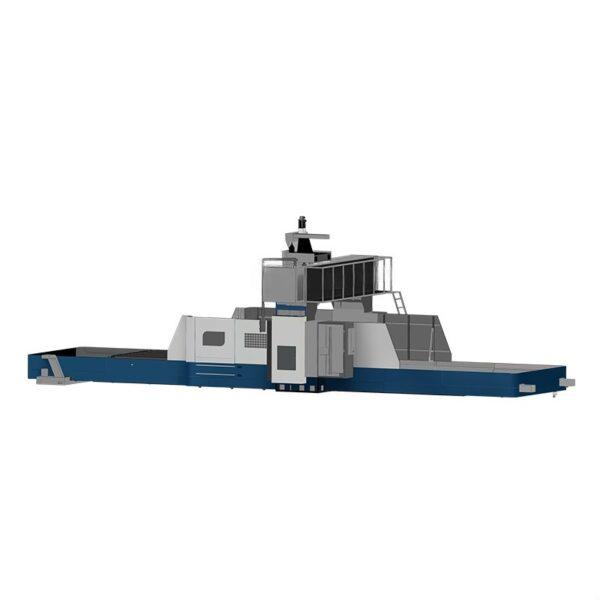

GMC5037 Gantry Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
GMC5037 |
|
Table size（W*L） |
mm |
2500x5040 |
|
X axis travel |
mm |
5000 |
|
Y axis travel |
mm |
3700 |
|
Z axis travel |
mm |
1250 |
|
Gantry width/passing height |
mm |
W：3700 / H：1780 |
|
Table load |
t |
20 |
|
Distance between spindle nose and table surface |
mm |
350-1600 |
|
T slot(number-width*pitch) |
- |
Middle 11-28*200, Two side each 1-28*180 |
|
Spindle taper |
- |
BT50/200 |
|
Spindle speed |
r/min |
6000 |
|
Rapid traverse speed |
m/min |
10 |
|
Cutting feed speed |
m/min |
6 |
|
Main motor power |
kw |
18.5 |
|
Tool magazine |
Arm 30 |
|
|
Positioning accuracy |
mm |
X/Y±0.0075 Z±0.015 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Overall dimension |
mm |
15440x7870x6470 |
|
Machine weight(about) |
t |
80 |
