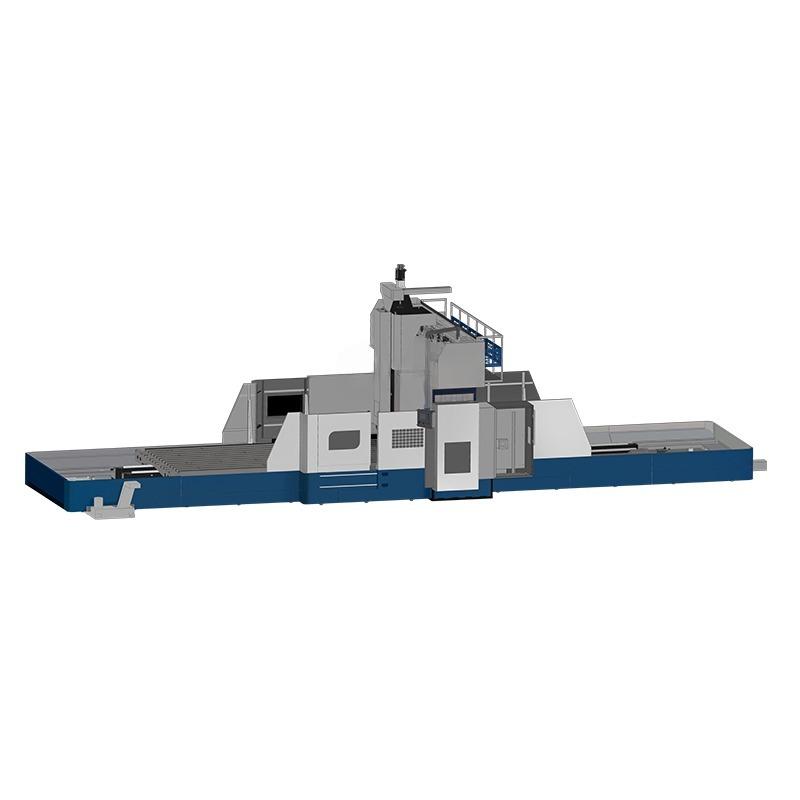

GMC4022 Gantry Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
GMC4022 |
|
Table size（W*L） |
mm |
2000x4000 |
|
X axis travel |
mm |
4000 |
|
Y axis travel |
mm |
2200 |
|
Z axis travel |
mm |
1000 |
|
Gantry width/passing height |
mm |
W：2300 / H：1400 |
|
Table load |
t |
12 |
|
Distance between spindle nose and table surface |
mm |
280-1280 |
|
T slot(number-width*pitch) |
- |
9-28*200 |
|
Spindle taper |
- |
BT50/200 |
|
Spindle speed |
r/min |
6000 |
|
Rapid traverse speed |
m/min |
12 |
|
Cutting feed speed |
m/min |
8 |
|
Main motor power |
kw |
18.5 |
|
Tool magazine |
Arm 30 |
|
|
Positioning accuracy |
mm |
X/Y±0.0075 Z±0.015 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Overall dimension |
mm |
12750x5940x5100 |
|
Machine weight(about) |
t |
43 |
