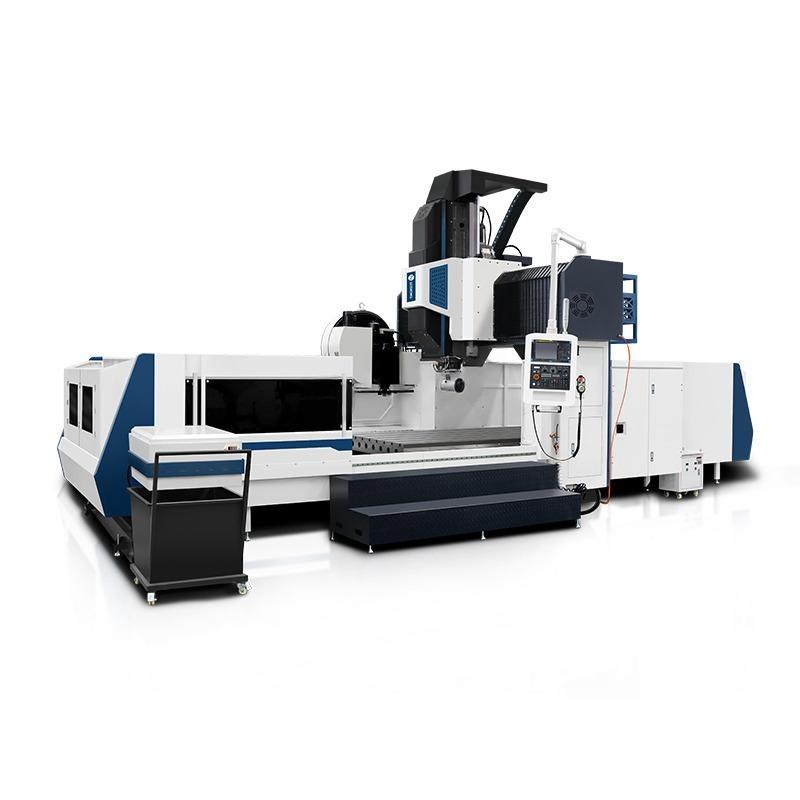

GMC3720 Gantry Machining Center
MACHINE description
|
SPECIFICATIONS |
Units |
GMC3720 |
|
Table size（W*L） |
mm |
1800x3500 |
|
X axis travel |
mm |
3700 |
|
Y axis travel |
mm |
2200 |
|
Z axis travel |
mm |
1000 |
|
Gantry width/passing height |
mm |
W：2000 / H：1300 |
|
Table load |
t |
8 |
|
Distance between spindle nose and table surface |
mm |
205-1205 |
|
T slot(number-width*pitch) |
- |
9-22*190 |
|
Spindle taper |
- |
BT50/155 |
|
Spindle speed |
r/min |
6000 |
|
Rapid traverse speed |
m/min |
15 |
|
Cutting feed speed |
m/min |
10 |
|
Main motor power |
kw |
18.5 |
|
Tool magazine |
Arm 30 |
|
|
Positioning accuracy |
mm |
X/Y±0.0075 Z±0.015 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Overall dimension |
mm |
12000x4910x4800 |
|
Machine weight(about) |
t |
31 |
