- One-piece bed adopts high strength iron to ensure rigidity and precision
- Ultrasonic frequency quenched guide-ways ensure good wear-resistance
- Headstock gears hardened and ground to achieve precision and low noise

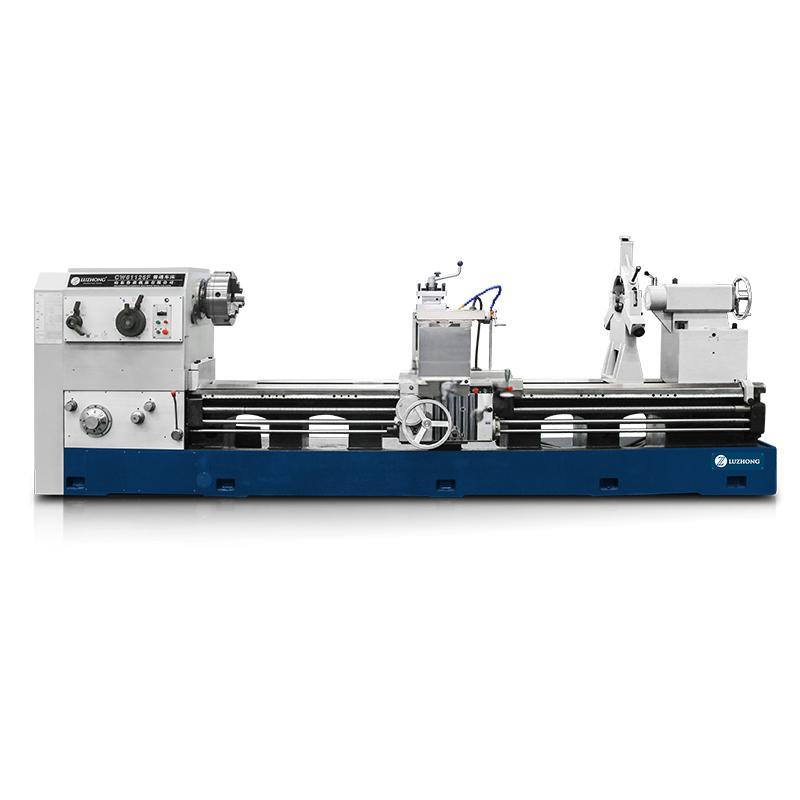

CW61140L Heavy Duty Lathe Machine
from /month
MACHINE description
|
Specification |
Unir |
CW61140L |
|
Swing over bed |
mm |
1400 |
|
Swing over cross slide |
mm |
1000 |
|
Distance between centers |
mm |
1500/2000/3000/4000/5000/6000 |
|
Guideway width |
mm |
755 |
|
Max. load capacity |
T |
6 |
|
Spindle bore |
mm |
130 |
|
Spindle bore taper |
- |
Metric φ140/MT6 |
|
Spindle nose type |
- |
A2-15 |
|
Spindle speed steps |
- |
FWD. 21 steps |
|
Spindle speed range |
rpm |
3.15-315 |
|
Chuck |
mm |
φ1000 4-jaw manual |
|
Turret/tool post |
- |
Manual turret 4 position |
|
Tool shank size |
mm |
45 x 45 |
|
X axis travel |
mm |
620 |
|
Z axis travel |
mm |
1350/1850/2850/3850/4850/5850 |
|
X axis feed grade/range |
mm/r |
56/0.05-6 |
|
Z axis feed grade/range |
mm/r |
56/0.1-12 |
|
X axis rapid traverse |
mm/min |
1870 |
|
Z axis rapid traverse |
mm/min |
3740 |
|
Metric thread grade/range |
mm |
44/1-120 |
|
Inch thread grade/range |
T.P.I |
31/28-3/8 |
|
Module thread grade/range |
mm |
- |
|
DP thread grade/range |
D.P. |
- |
|
Tailstock quill diameter |
mm |
φ160 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
300 |
|
Main spindle motor |
kW |
22 |
|
Rapid traverse motor |
kW |
1.5 |
|
Coolant pump motor |
kW |
0.125 |
|
Width x Height |
mm |
2250 x 2050 |
|
Length |
mm |
4600/5100/6100/7100/8100/9100 |
|
Net weight |
T |
11.2/11.7/12.3/13.3/14.3/15.3 |
