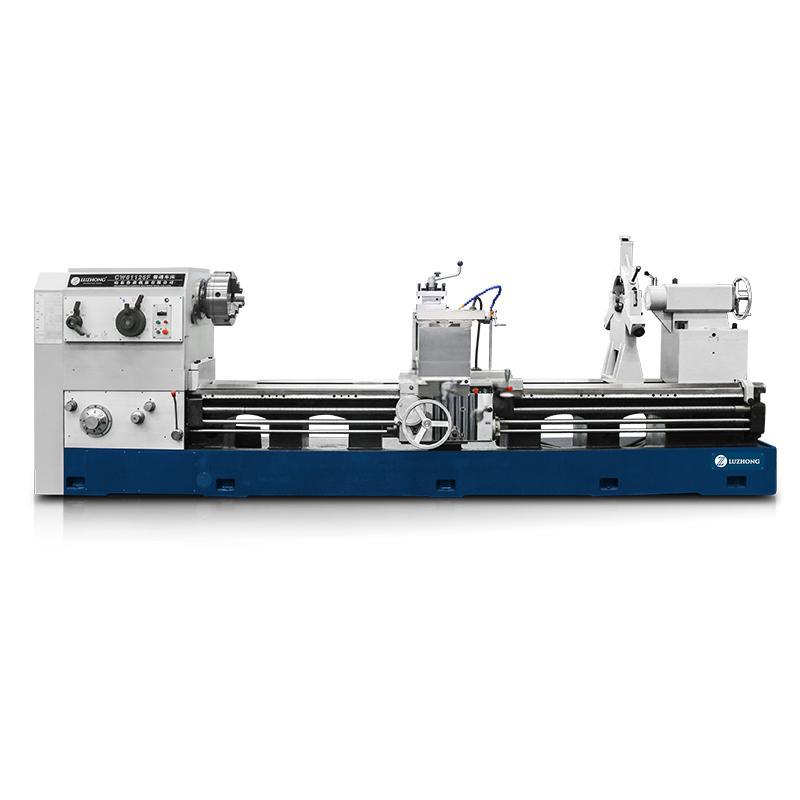

CW61125F Heavy Duty Lathe Machine
from /month
MACHINE description
|
Specification |
Unit |
CW61125F |
|
Swing over bed |
mm |
1250 |
|
Swing over cross slide |
mm |
850 |
|
Distance between centers |
mm |
1500/2000/3000/4000/5000/6000 |
|
Guideway width |
mm |
600 |
|
Max. load capacity |
T |
4 |
|
Spindle bore |
mm |
104 |
|
Spindle bore taper |
- |
Metric φ120/MT5 |
|
Spindle nose type |
- |
C11 |
|
Spindle speed steps |
- |
FWD. 18 steps |
|
Spindle speed range |
rpm |
5.4-720 |
|
Chuck |
mm |
φ400 3-jaw manual |
|
Turret/tool post |
- |
Manual turret 4 position |
|
Tool shank size |
mm |
32x 32 |
|
X axis travel |
mm |
420 |
|
Z axis travel |
mm |
1350/1850/2850/3850/4850/5850 |
|
X axis feed grade/range |
mm/r |
64/0.05-12.15 |
|
Z axis feed grade/range |
mm/r |
64/0.1-24.3 |
|
X axis rapid traverse |
mm/min |
2300 |
|
Z axis rapid traverse |
mm/min |
4000 |
|
Metric thread grade/range |
mm |
50/1-240 |
|
Inch thread grade/range |
T.P.I |
26/14-1 |
|
Module thread grade/range |
mm |
- |
|
DP thread grade/range |
D.P. |
- |
|
Tailstock quill diameter |
mm |
φ120 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
250 |
|
Main spindle motor |
kW |
11 |
|
Rapid traverse motor |
kW |
1.1 |
|
Coolant pump motor |
kW |
0.125 |
|
Width x Height |
mm |
2100X2200 |
