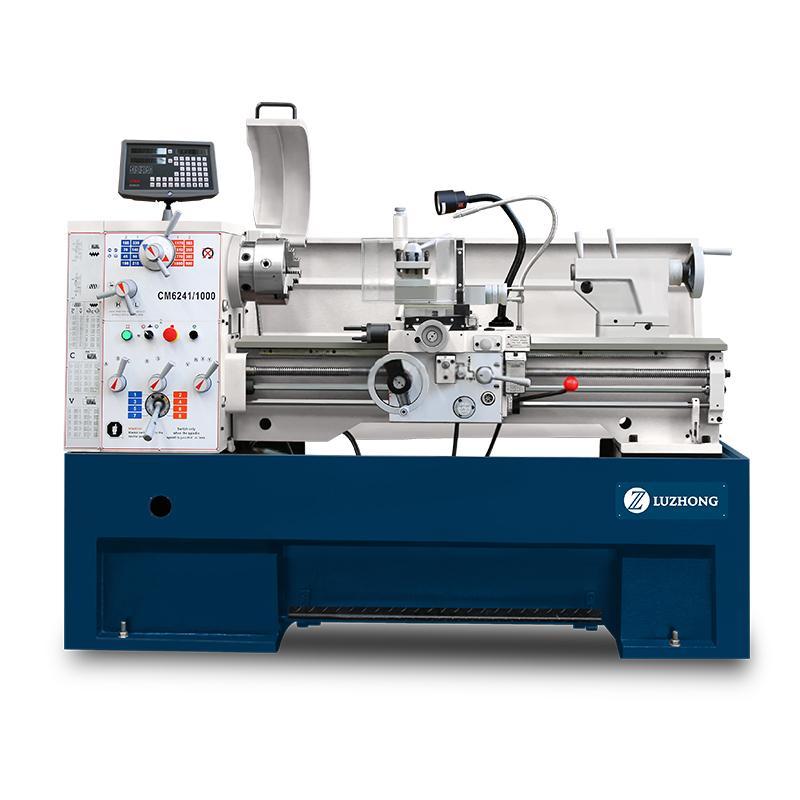

CM6241 CM6241V Lathe Machine
MACHINE description
| SPECIFICATION | CM6241 | CM6241V |
| Swingoverbed | 410mm(16") | 410mm(16") |
| Swingovercrossslide | 255mm(10") | 255mm(10") |
| Swingingap | 580(23") | 580(23") |
| Lengthofgap | 250(10") | 250(10") |
| Distancebetweencenters | 1000mm(40")/1500mm(60’’) | 1000mm(40")/1500mm(60’’) |
| Centerheight | 205(10’’) | 205(10’’) |
| Widthofbed | 250(10") | 250(10") |
| Spindlenose | D1-6 | D1-6 |
| Spindlebore | 52mm(2") | 52mm(2") |
| Taperofspindlebore | No.6Morse | No.6Morse |
| Rangeofspindlespeed | 16changes45-1800r/min | 30-550r/min or 550-3000r/min |
| Max.travelofcompoundrest | 140mm(5-1/2") | 140mm(5-1/2") |
| Max.travelofcrossslide | 210mm(8-1/4") | 210mm(8-1/4") |
| Leadscrewpitch | 4T.P.I. | 4T.P.I. |
| Max.Sectionoftool | 20×20mm(13/16") | 20×20mm(13/16") |
| Longitudinalfeedsrange | 0.05-1.7mm/rev(0.002"-0.067"/rev) | 0.05-1.7mm/rev(0.002"-0.067"/rev) |
| Crossoeedsrange | 0.025-0.85mm(0.001"-0.0335"/rev) | 0.025-0.85mm(0.001"-0.0335"/rev) |
| Metricthreadsrange | 39kinds0.2-14mm | 39kinds0.2-14mm |
| Inchthreadsrange | 45kinds2-72T.P.I | 45kinds2-72T.P.I |
| Diametricalpitchesrange | 21kinds44D.P. | 21kinds44D.P. |
| Modulepitchesrange | 18kinds0.3-3.5M.P. | 18kinds0.3-3.5M.P. |
| Dia.oftailstocksleeve | 50mm(2") | 50mm(2") |
| Traveloftailstocksleeve | 120mm(4-3/4") | 120mm(4-3/4") |
| Morsetaperoftailstocksleeve | No.4Morse | No.4Morse |
| Crossadjustock | ±13mm(±1/2") | ±13mm(±1/2") |
| Powerofmainmotor | 2.8/3.3kw(3.8/4.5HP)3PH | 2.8/3.3kw(3.8/4.5HP)3PH |
| Powerofcoolantpump | 0.1KW(1/8HP),3PH | 0.1KW(1/8HP),3PH |
| Overalldimension(L×W×H) | 1940/244×850×1300mm | 1940/244×850×1300mm |
| Packingsize(L×W×H) | 2060/2560×900×1640mm | 2060/2560×900×1640mm |
| Netweight/Grossweight | 1160/13501340/1565kg | 1160/13501340/1565kg |
