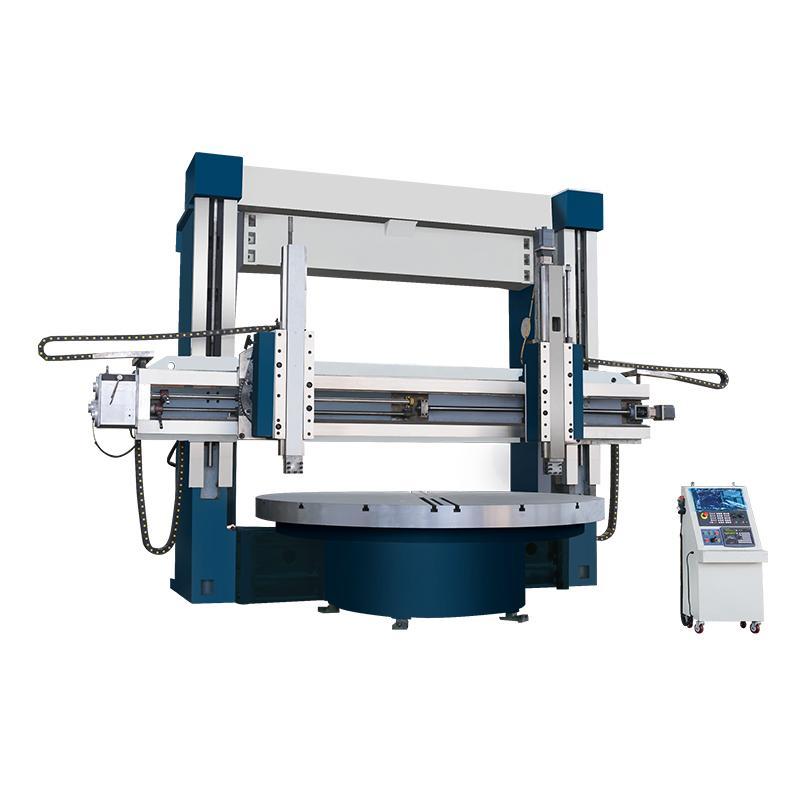

CK5240xH/20 CK5240×H/32 CNC Vertical Lathe Machine
from /month
MACHINE description
Specification |
units |
CK5240×H/20 |
CK5240×H/32 |
Max,turning diameter |
mm |
4000 |
|
Table diameter |
mm |
2830 |
3200 |
Max,height of workpiece |
mm |
2000/2500 |
|
Max.weight of workpiece |
t |
20 |
32 |
Max.torque of table |
KN.m |
63 |
70 |
Spindle speed range |
r/min |
2-63 |
0.42-42 |
Max.cutting force of rail head |
KN |
35 |
40 |
Range of tool feed |
mm/min |
0.2-145 |
0.2-145 |
Horizontal tool travel |
mm |
2150 |
|
Vertrical tool travel |
mm |
1250 |
|
Tool head srapid traverse |
mm/min |
3500 |
3500 |
Tool size |
mm |
40×50 |
50×50 |
Main motor power |
KW |
55 |
75 |
Overall dimension |
cm |
690×510×640/690 |
690×550×640/690 |
Machine weight(Approx.) |
t |
44/46 |
51/52 |
