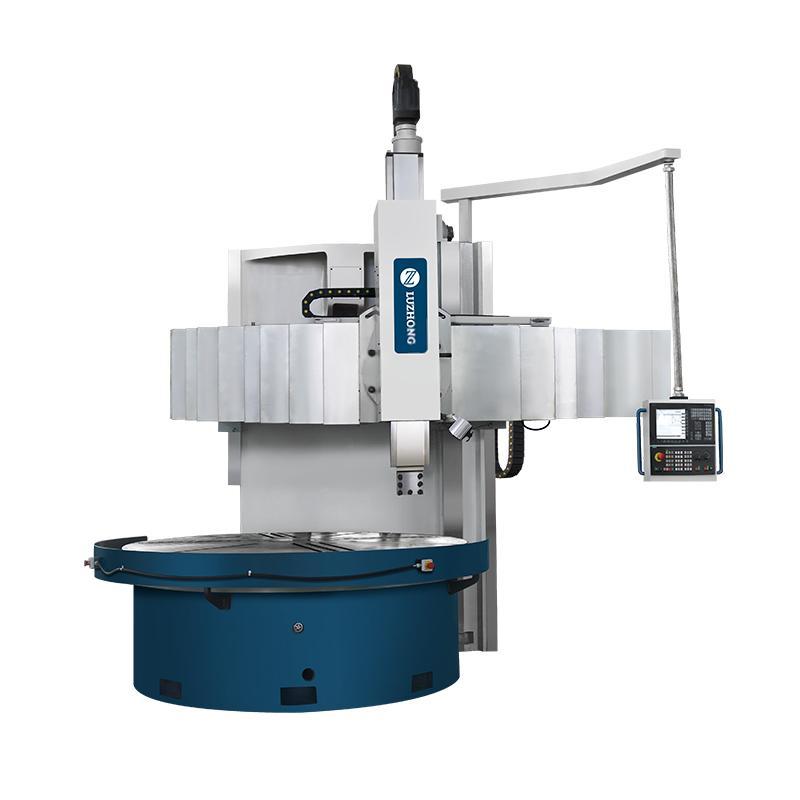

CK5126xH/8 CNC Vertical Lathe Machine
from /month
MACHINE description
|
Specification |
units |
CK5126×H/8 |
|
Max,turning diameler |
mm |
2600 |
|
Table diameter |
mm |
2250 |
|
Max. height of workpiece |
mm |
1350/1600 |
|
Max. weighi of workpiece |
t |
8 |
|
Max. torque oftable |
KN.m |
35 |
|
Spindle speed range (16steps) |
r/min |
3.2-100 |
|
Max. cutting force of rail head |
KN |
22 |
|
Range of tool feed |
mm/min |
0.1-500 |
|
Horizontal tool travel |
mm |
1380 |
|
Vertrical tool travel |
mm |
1000 |
|
Tool head srapid traverse |
mm/min |
3750 |
|
Elevating speed of cross rail |
mm/min |
440 |
|
Tool size |
mm |
30×40 |
|
Main motor power |
KW |
37 |
|
Overall dimension |
mm |
3900×2950×4200 |
|
Machine weight(Approx.) |
t |
21/23 |
