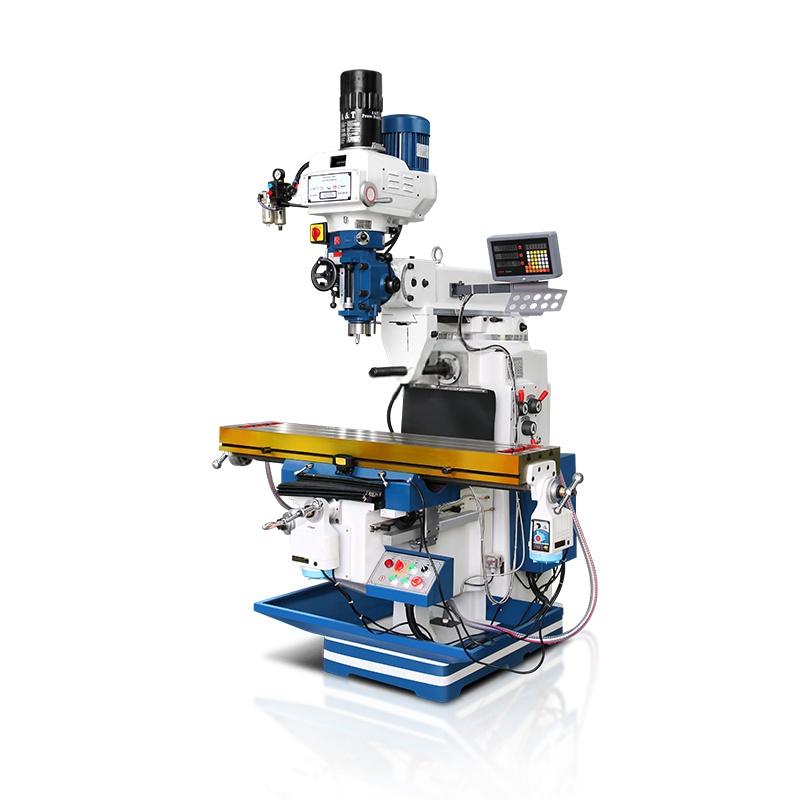

5HW Turret Milling Machine

pecifications

Units

5HW

Table size

mm

1370x305

Tabletravel

mm

810/380/400

T slot(number-width-pitch)

mm

3-16-65

Spindle taper

(V)R8/ISO40

(H)ISO40

Spindle speed range

rpm

(V)50HZ:65-4500 60HZ:80-5440,16 steps;

(H)45-1350,12steps

Optional:variable 65-4000

Spindle travel

mm

127

Spindle feed range

mm

0.04,0.08,0.15

(3 steps)

Distance between spindleaxisand table surface

mm

0-400

Mainmotor power

kw

2.2(V)3(H)

Head rotation (left - right )

°

±90°

Head rotation (front - rear)

°

±45°

Weight

kg

1850

Overall dimension

mm

1550x1650x2250
