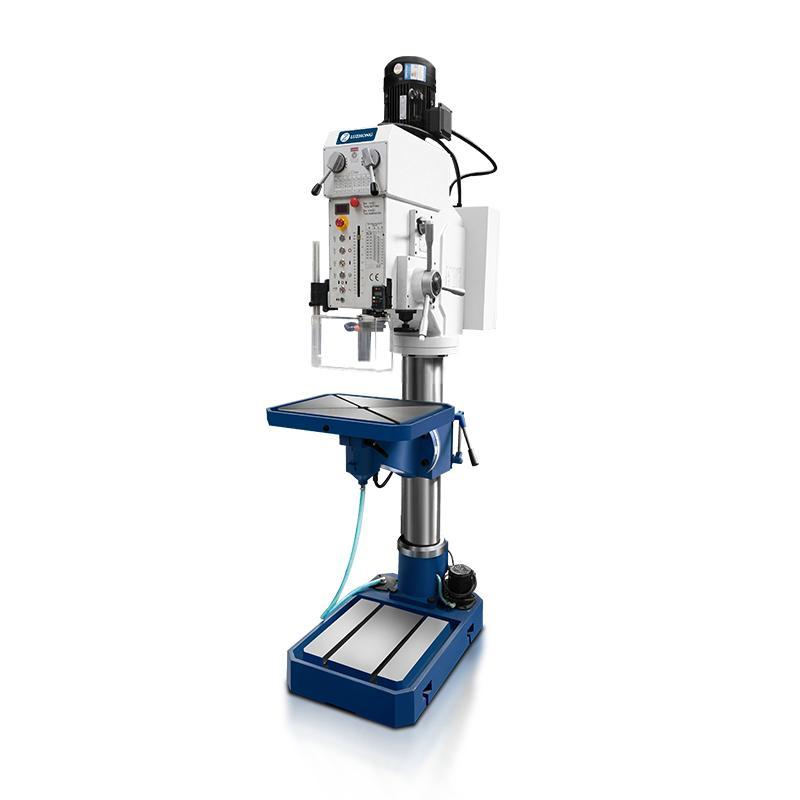

Z5040A Vertical Drilling Machine
MACHINE description
|
Model |
Unit |
Z5040A |
|
Max. drilling capacity |
Mm |
40 |
|
Max. tapping capacity |
Mm |
M22 |
|
Distance spindle axis to column surface |
Mm |
590 |
|
Max. distance spindle nose to base |
Mm |
1175 |
|
Max. spindle travel |
Mm |
200 |
|
Spindle table |
MT4 |
|
|
Number of speed step of the spindle |
Step |
12 |
|
Spindle speed range |
r/mm |
52-1400 |
|
Feed steps of the spindle |
degree |
4 |
|
Feed range of the spindle |
Mm/r |
0.1,0.2,0.3,0.4 |
|
Max. stroke of the worktable and its bracket |
Mm |
530(410) |
|
Rotation degree of worktable and its bracket in cross direction |
Degree |
±45° |
|
Working area of the worktable |
Mm |
580*460 |
|
Dia. of colun |
mm |
160 |
|
Main motor power |
KW |
2.2 |
|
Max. external dimension |
Mm |
940*680*2405 |
|
N.W |
Kg |
650 |
